Brand: American Dynamics | SKU: 10071047

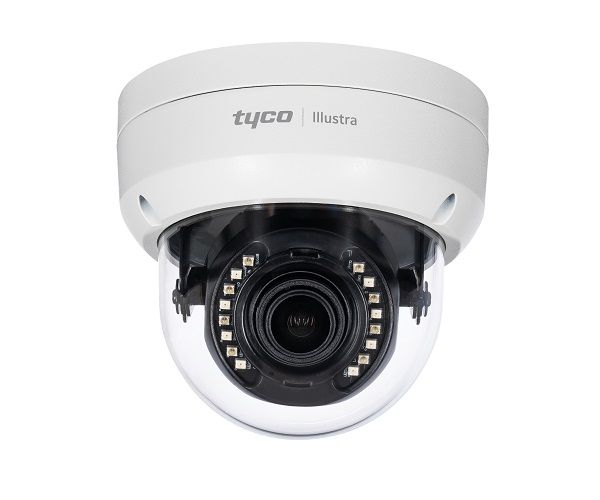

American Dynamics IES02-D12-OI04 | Illustra Essentials 2Mp Minidome, 2.7-13.5Mm, Outdoor, Vandal, Clear, White, Tdn With Ir

Regular price $316.47
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

American Dynamics IES02-D12-OI04 | Illustra Essentials 2Mp Minidome, 2.7-13.5Mm, Outdoor, Vandal, Clear, White, Tdn With Ir

The Illustra Essentials Gen4 Varifocal Miini-Dome camera offers resolutions up to 1080p with IR illumination to manage low light scenes. The affordable cameras capture video in a variety of lighting conditions with features such as True Day/Night and Wide Dynamic Range to fulfill security operators’ expectations, all while maintaining a lower price point. The camera includes the latest compression technologies by supporting both H.265 and H.264 codecs resulting in reduced bandwidth and storage requirements. To aid ease of setup all Essentials Gen4 models support one-touch auto-focus, and the varifocal models provide motorized zoom. Rated IP67 for an additional degree of environmental protection, the Varifocal Mini-Dome exceeds previous generations of Illustra Essentials cameras. The Essential Gen4 Varifocal Mini-Dome also features corridor mode which allows cameras to maximize video surveillance in narrow vertical situations. Ideal for hallways, retail aisles, and tunnels this mode creates a unique high quality, vertical video.

American Dynamics - IES02-D12-OI04 - Features

  • 2MP (1080p) resolution for HD quality images
  • Manage bandwidth resources with H.264 and H.265 dualstream encoding
  • Up to 30 frames per second for seamless video streaming
  • 2.7-13.5mm varifocal lens with motorized zoom
  • One-touch auto-focus
  • IR Illuminators deliver clear video when viewing dark scenes
  • IP67 environmental rating to protect against dust and water
  • IK10 vandal resistant
  • True Day/Night functionality
  • WDR to simultaneously view high-contrasting areas
  • Supports corridor mode
  • Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range

Specifications

American Dynamics - IES02-D12-OI04 - Specifications

Dome ColorCLEAR
EnvironmentOUTDOOR
Form FactorMINIDOME
UNSPSC Code46171610
SKUIES02-D12-OI04
ManufacturerAmerican Dynamics
Camera SignalNetwork IP
Connection TypeWired
Infrared Distance61~100 Feet
Resolution2 Megapixel
Lens TypeVarifocal
Lens Size2.7-13.5mm
Mount TypeCeiling, Wall
Compression MethodH.264, M-JPEG, H.265
DurabilityVandal Resistant, Weather Resistant
Voltage12vDC, PoE
Dimensions (W x H)Ø124mm x 113mm (Ø4.88in x 4.45in)
Electronic Shutter1/2~1/10,000s (Manual:default NTSC=1/30s, PAL=1/25s) /(Shutter-priority:default NTSC=1/60s, PAL=1/50s)
Image Device1/2.8"Sony CMOS
Minimum Scene IlluminationColor: 0.08 Lux (50IRE) | 0.03 Lux (30IRE), B/W: 0.05 Lux (50IRE) | 0.02 Lux (30IRE), With IR: 0.0 Lux
Operating HumidityDesiccant pack provided
Operating TemperatureCold Start Temperature: -200C to 600C (-40F to 1400F), Operating Temperature: -300C to 600C (-220F to 1400F)
Power Consumption9.9W
Privacy Zone8
ProtocolsTCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, Unicast, Multicast, NTP, SMTP, WSSecurity, IEEE 802.1x, PEAP, SSH, HTTPS, SSL, SOAP, WSAddressing, CIFS, SNMP, UPnP, RTSP, LLDP
S/N RatioMore than 50dB
WeatherproofIP67
Digital Noise Reduction3D
Angle of ViewWide Angle: 100°/53°, Telephoto: 34°/20°
Motion Detection Tracking3 Zones
IR Distance30m/98.42ft
Auto Gain ControlYes
Day/NightYes
Digital Noise ReductionYes
Motion Detection TrackingYes
Privacy MaskingYes
Wide Dynamic RangeYes
MirrorYes
ONVIFYes
