Brand: American Dynamics | SKU: 10214965

American Dynamics IFS02P6ONWITB | Illustra Flex 2Mp Ptz, 30X, Outdoor, Vandal, White, Tdn With Ir, Twdr

Regular price $1,575.13
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

American Dynamics IFS02P6ONWITB | Illustra Flex 2Mp Ptz, 30X, Outdoor, Vandal, White, Tdn With Ir, Twdr

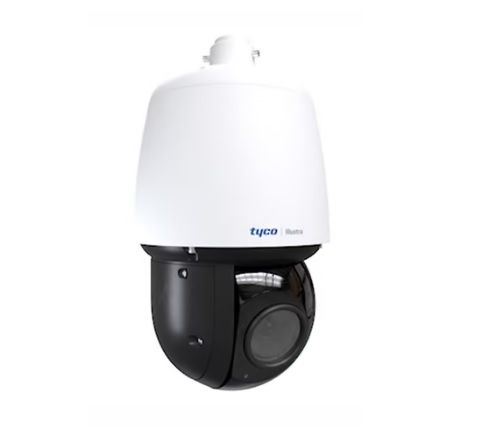

The IFS02P6ONWITB from American Dynamics is a 2 Megapixel IR Outdoor PTZ Camera, 30X Lens.

Effectively Manage Vast Surveillance Areas while Streaming High-Quality Video

The Flex PTZ range is ideal for applications that require reliable, expansive functionality at an economical price point. With its 30x optical and 12x digital magnification, the Flex PTZ range is capable of effectively managing video quality at a distance of up to 1,000ft (300m). Powerful IR LEDs on the outdoor IR PTZ model allow for a night scene illumination of up to 500ft (150m). The PTZ Bubble ensures camera lens direction is obscured, providing a more covert solution suited for retail and gaming. Packaged in an environmentally sealed, and vandal-resistant design, the Flex PTZ range maximizes video quality at any tilt angle. Additionally, the Zoom Adjusted Protocol (ZAP) automatically adjusts pan and tilt speeds scaled in proportion to zoom position.

Safeguard Against Cyber Attacks Across Devices

Illustra Flex IP cameras have been designed to be resilient against cyber-threats. This solution has a security overview page designed to help administrators quickly determine if the proper levels of protection are applied. Safeguard controls includean enhanced security mode which forces the use of complex, nondefault passwords and encrypted communications. Illustra Flex IP cameras adhere to the rigorous standards of the Tyco Cyber Protection Product Security Program. The holistic approach to cyber protection is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.

Powerful Technology to Increase Confidence and Savings

The Flex product family cameras feature built-in technology that ensure efficient recording and smart bandwidth management. Whenpaired with a VideoEdge or exacqVision NVR, edge-based failover redundancy allows video recording to continue on the camera when anoutage occurs, then when connection is restored transfers video back to the media database for seamless viewing later. Illustra IntelliZipcontinuously monitors and optimizes system streaming parameters to match the level of activity within the camera’s field of view.

American Dynamics - IFS02P6ONWITB - Features

  • 2MP resolution for HD quality images
  • True Day/Night and True Wide Dynamic Range produce quality video regardless of lighting conditions
  • Operating temperature for Flex IR PTZ outdoor model sustains as low as -58°F and up to 140°F for installation into a variety of environments
  • IP66 (weather) and IK10 (vandal) rated
  • ONVIF Profile S conformant for simplified integrations with a variety of manufacturers
  • Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range

Specifications

American Dynamics - IFS02P6ONWITB - Specifications

UNSPSC Code46171610
SKUIFS02P6ONWITB
ManufacturerAmerican Dynamics
Camera SignalNetwork IP
Infrared Distance101 Feet +
Resolution2 Megapixel
Lens TypeMotorized Zoom
Lens Size30X
Mount TypeCeiling, Wall
Compression MethodH.264, M-JPEG, H.265, H.264+
DurabilityVandal Resistant, Weather Resistant
Voltage24vAC
Dimensions (W x H)Ø 7.48in (190mm) | Height: 12.9in (330mm) | Ball: 6.3in (Ø160mm)
Electronic Shutter1/30(25) - 1/30,000 sec
Image DeviceProgress Scan RGB CMOS 1/3"
Minimum Scene IlluminationColor: 0.2 Lux at 1/30s; 0.03 Lux at 1/4s, B/W: 0.001 Lux at 1/4s, With IR: 0.0 Lux
Operating HumidityUp to 90% Non-Condensing
Operating Temperature-58°F to 122°F (-50°C to 60°C)1
OSD MenuArabic, Czech, Chinese (Simplified), Chinese (Traditional), Danish, Dutch, English (US), French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazilian), Russian, Spanish, Turkish
Power Consumption51W
Privacy Zone8
ProtocolsTCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, SNMP, UPNP, RTSP, LLDP
Video OutputNTSC/PAL Composite Video
WeatherproofIP66
Digital Noise Reduction2D and 3D
Angle of ViewWide Angle: 65°/38°, Telephoto: 2.4°/1.4°
Motion Detection Tracking1
IR Distance150m/500ft
AudioYes
Auto Gain ControlYes
Day/NightYes
Digital Noise ReductionYes
Motion Detection TrackingYes
On Screen Display MenuYes
Privacy MaskingYes
Wide Dynamic RangeYes
