American Dynamics IFS16-M10-BT03 | Illustra Flex 4X 4Mp Multisensor...
Description
Description

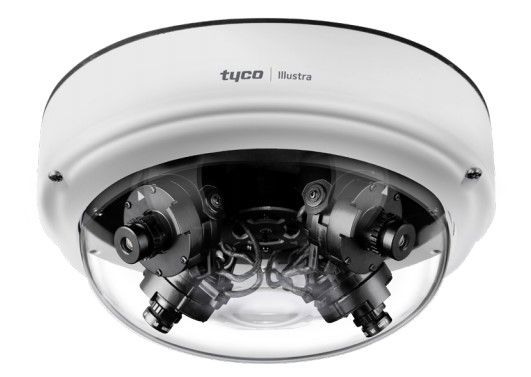

The IFS16-M10-BT03 from American Dynamics is a 4 x 4 Megapixel Indoor/Outdoor 360 Degree Camera, 2.8mm Lens. The Illustra Flex multi-sensor camera is ideal for applications that require a flexible, costeffective surveillance solution that provides wide area coverage along with detailed images. With one IP address and one network cable, the four (4x4MP) multidirectional camera heads provide a flexible, cost-effective solution for multidirectional surveillance. Camera heads can be positioned and angled independently to provide 360 degree coverage in four separate non-stitched streams. The Flex multi-sensor’s magnetic base enables each sensor to be independently placed, providing operators with a multitude of configuration options. The three axis gimbal on each sensor then allows the Field of View (FoV) configuration to be fine tuned with up to 60 degree tilting and provides a total field of view of 180, 270 or 360 degrees.
American Dynamics - IFS16-M10-BT03 - Features
- Wide area coverage from a single camera
- 4x4MP multidirectional camera heads for 360 coverage
- Each camera head supports up to three streams
- H.264 addresses network and storage cost concerns
- Flexibility to choose between overview and detailed images for each stream
- Independently set up the positioning, angle and rotation of each camera head
- Field swappable lens modules
- TWDR (Multi-shutter)
- IP66 rated
- Vandal Resistant IK10
- PoE+ / 12VDC
- Audio, Auto Gain Control, Day/Night, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Specifications
Specifications
American Dynamics - IFS16-M10-BT03 - Specifications
| UNSPSC Code | 46171610 |
|---|---|
| SKU | IFS16-M10-BT03 |
| Manufacturer | American Dynamics |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 16 Megapixel |
| Lens Type | Fixed |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø7.6 in x 3.3 in (Ø 192 mm x 84 mm) |
| Electronic Shutter | Auto / Manual (1/15 ~ 1/32000) |
| Image Device | 1/3" CMOS Sensor |
| Minimum Scene Illumination | Color 0.41 Lux | B/W 0.022 Lux |
| Operating Humidity | 10-90% RH(Non-Condensing) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| OSD Menu | English, Japanese, Korean |
| Power Consumption | PoE+ 17.5W, 12VDC 16.5W |
| Privacy Zone | 16 per sensor |
| Protocols | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF |
| Signal System | PAL/ NTSC |
| Weatherproof | IP66 |
| Angle of View | Field of View (H/V): 90° / 55° |
| Motion Detection Tracking | Up to four areas per sensor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
