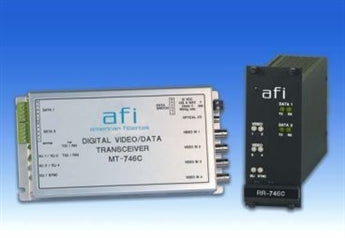

American Fibertek MR746C 4-Channel 8-Bit Digital Video/ Multi-Pro

Features:

• Compatible with NTSC, (RS - 170A & RS -343A), PAL and SECAM
• Diagnostics: Video, Data, OLI, DC Power and Digital Frame Sync
• Full Color Transmission
• RS485/422/232 Two Way Data
• Real Time Video Transmission
• Serial Digital Transmission

Specifications:

• I/0 Level: 1 Vp-p (-+3 dB)
• I/0 Impedance: 75 Ohms
• Bandwidth: 7 MHz
• Differential Gain: 2 %
• Differential Phase: 0.7 degrees
• SNR (Unified Weighted): 55 dB
• Connector: BNC
• Number of Channels: 1 (Full Duplex)
• Interface: 485(2 or 4 Wire)/RS422/RS232
• Data Format: Asynchronous, Serial
• Data Rate: DC to 115 Kbs
• Connector: 5 Pin Screw Terminals
• Input: Switch Closure to Ground
• Output: Dry Contact
• Response Time: 2 mS
• Max Voltage: 100 VDC or Peak AC
• Max Current: 0.5 A
• Connector: Terminal Block
• Wavelength: 1310/1550 nm
• Loss Budget (62/125u): 8 dB
• Maximum Distance: 2 Km (Limited by Fiber Dispersion)
• Connector: ST
• Temperature (Operating): -40 degreesC to +75 degreesC, non-condensing
• Power Supply: 12 VDC (AFI Part#: PS-12D)
• Size: 8-1/8" x 4-1/8" x 1-1/2"
