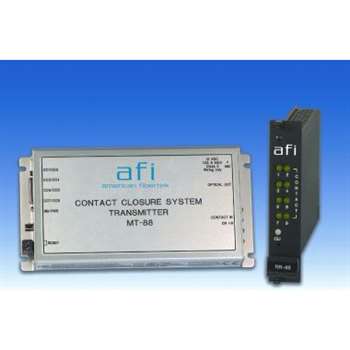

American Fibertek MR88SL 8-Channels, Supervised, Power Fail Safe,

The American Fibertek 88SL Series multiplexes 8 channels of supervised input dry contact closure on one singlemode fiber. A set of 8 LEDs on the transmitter and the receiver units indicates the channel(s) status. The Contact Input supervision will detect an open connection and a shorted connection as an alarm. The alarm condition is removed only when the Contact Input voltage falls within a predetermined range.

Features:

• 8 Channels, Form-C (Normally Open or Normally Closed) Dry Contact Closure
• Diagnostics: Power, Optical Presence and Channel Indicators
• High Density DB26 Data Connector with Adaptor to screw terminal
• External Contact Input Supervision

Specifications:

• Connector: DB26 with Adaptor to Screw Terminal
• Contact Closure Rating: 0.5A Max. 40 Volt DC or Peak AC Per Channel
• Response Time: 5 ms
• Wavelength: 1310nm
• Loss Budget (9/125u): 21 dB
• Connector: FC
• Temperature (Operating) -40 degreesC to +75 degreesC, non-condensing
• Power Supply: 12 VDC (AFI Part # PS-12D)
• Dimensions: 8-1/8" x 4-1/8" x 1-1/8"
