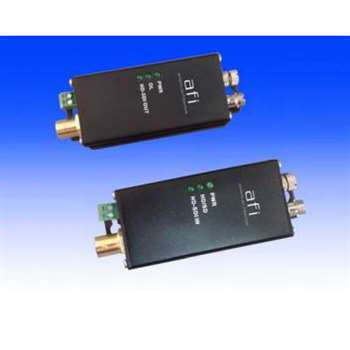

American Fibertek MR9115G Single Channel Hd Video Serial Digital I

The American Fibertek Series 91-1.5G Series transmits one channel of non-compressed high definition HD-SDI or SD-SDI signals on one singlemode or multimode optical fiber. The Series 91-1.5G is capable of transmitting up to 2 km on 62um multimode fiber and up to 20km on singlemode fiber while maintaining excellent video quality. Diagnostic LED indicators provide status on the SDI signal, optical power, and DC power to unit.

Features:

• Transmission of: Multi-Rate SD / HD-SDI
• Diagnostics: SDI Presence, DC Power, OLI
• Real-Time, Uncompressed Video Transmission
• Supports Embedded Audio and Metadata

Specifications:

• Input/Output Impedance: 75 ohm
• Input/Output Level: 800 mVpp
• Format: SD-SDI, HD-SDI
• Data Rate: 1.485Gbs max
• Resolutions: 720p and 1080p
• Standards: SMPTE 259M, 292M
• Max Resolution: 720P 50/60 1080i 50/60 1080P 25/30
• Transmission Distance: 100 m on Belden 1694A
• SDI Connector: BNC
• Wavelength: 1310 nm
• Loss Budget (50/125u): 5 dB; (62.5/125u): 8 dB
• Transmission Distance: 2 km - limited by fiber
• Connector: ST
• Operating Temperature: -40 degreesC to +75 degreesC
• Storage Temperature: -40 degreesC to +85 degreesC
• Relative Humidity (non-condensing): 0 to 95%
• MTBF: > 100,000 hours
• Power Supply: 12VDC @ 150mA
• Power Connector: 2 pin terminal block
• Size: (WxHxL): 1.5" x 1.0" x 3.75"
