American Fibertek MRX1MFXST | Mini Ethernet Media Converter - Singl...
Description
Description
Mini Ethernet Media Converter - Single Fiber 100BASE-FX Multimode.

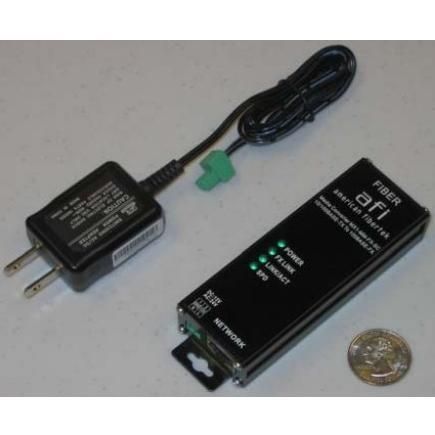

The American Fibertek MRX1M-FX-ST receives 10/100 Base-TX Ethernet signals at the RJ45 port and 100 Base-FX at the optical port over one multimode fibers. The system is comprised of two units (MTX1M to MRX1M) forming a point-to-point communications link. The system is designed to be completely transparent with auto negotiation features which automatically configure the units for the correct speed (10/100BaseTX). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of Link, Activity, and Speed status.
American Fibertek - MRX1MFXST - Features
- Complete Fiber Optic to Twisted Pair Media Interface
- Auto MDI / MDIX Detection
- Link and Activity Indicators for UTP and Fiber Ports
- 1 Fiber Versions
- Multimode Versions
- Dual Speed Copper Port
- 12 VDC or 24 VAC Power Inputs
- Full IEEE 802.3 compatibility
Specifications
Specifications
American Fibertek - MRX1MFXST - Specifications
| UNSPSC Code | 46171600 |
|---|
