American Fibertek MT746C | 4-Channel 8 Bit Video with MPD Data &...
Description
Description
Four 8 Bit Video & MPD Data & CC Module Tx 1310/1550nm 12dB 2Km MM 1 Fiber.

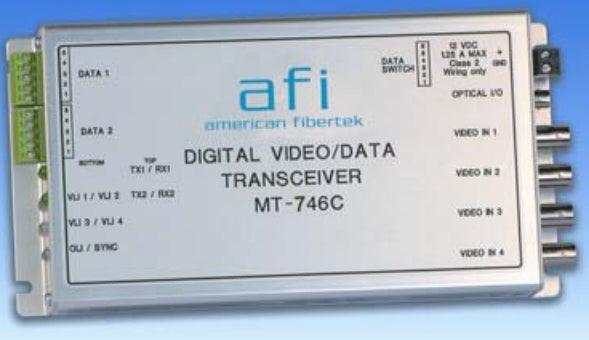

The American Fibertek 746C Series transmits four channels of high-quality digitized video and one channel of multi-protocol data (RS485 (2 wire or 4 wire) or RS422 or RS232 or Manchester) and a contact closure on one multimode optical fiber at 1310 and 1550nm. Designed to be completely transparent to all camera and monitor manufacturers, this system requires no field adjustments at installation or additional maintenance thereafter. Diagnostic indicators provide a quick visual indication of system status.
American Fibertek - MT746C - Features
- Compatible with NTSC, (RS-170A & RS-343A), PA and SECAM
- Diagnostics: Video, Data, OLI, DC Power and Digital Frame Sync
- Full Color Transmission
- RS485/422/232 Two Way Data
- Real Time Video Transmission
- Serial Digital Transmission
Specifications
Specifications
American Fibertek - MT746C - Specifications
| UNSPSC Code | 46171610 |
|---|
