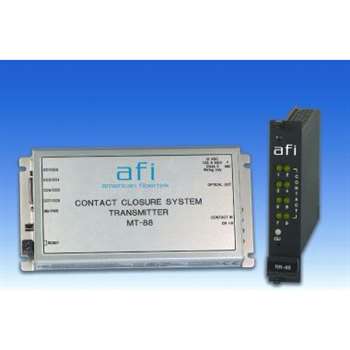

American Fibertek MT88SL 8-Channels, Supervised, Power Fail Safe,

American Fibertek MT-88SL Eight Channel Supervised External Contact Closure System, Single Mode, Module Transmitter. The American Fibertek 88SL Series multiplexes 8 channels of supervised input dry contact closure on one singlemode fiber. A set of 8 LEDs on the transmitter and the receiver units indicates the channel(s) status.The Contact Input supervision will detect an open connection and a shorted connection as an alarm. The alarm condition is removed only when the Contact Input voltage falls within a predetermined range. Failsafe operation is provided such that, if the optical power is loss or the transmitter or receiver dc power is loss, the normally open contact outputs will go to the alarm states (open).

Features:

• 8 Channels, Form-C (Normally Open or Normally Closed) Dry Contact Closure
• Diagnostics: Power, Optical Presence and Channel Indicators
• High Density DB26 Data Connector with Adaptor to screw terminal
• External Contact Input Supervision'

Specifications:

• Connector: DB26 with Adaptor to Screw Terminal
• Contact Closure Rating: 0.5A Max. 40 Volt DC or Peak AC Per Channel
• Response Time: 5 ms
• Wavelength: 1310nm
• Loss Budget (9/125u): 21 dB
• Connector: FC
• Temperature (Operating) -40 degreesC to +75 degreesC, non-condensing
• Power Supply: 12 VDC (AFI Part # PS-12D)
• Dimensions: 8-1/8 x 4-1/8 x 1-1/8
