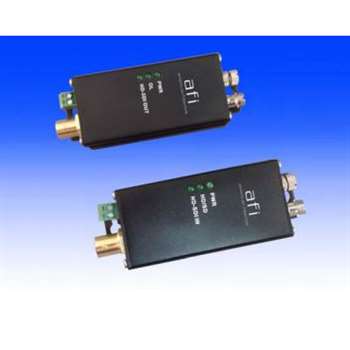

American Fibertek MT9115G Single Channel Hd Video Serial Digital I

Features:

• Transmission of: Multi-Rate SD / HD-SDI
• Diagnostics: SDI Presence, DC Power, OLI
• Real-Time, Uncompressed Video Transmission
• Supports Embedded Audio and Metadata

Specifications:

• Input/Output Impedance: 75 ohm
• Input/Output Level: 800 mVpp
• Format: SD-SDI, HD-SDI
• Data Rate: 1.485Gbs max
• Resolutions: 720p and 1080p
• Standards: SMPTE 259M, 292M
• Max Resolution: 720P 50/60 1080i 50/60 1080P 25/30
• Transmission Distance: 100 m on Belden 1694A
• SDI Connector: BNC
• Wavelength: 1310 nm
• Loss Budget (50/125u): 5 dB; (62.5/125u): 8 dB
• Transmission Distance: 2 km - limited by fiber
• Connector: ST
• Operating Temperature: -40 degreesC to +75 degreesC
• Storage Temperature: -40 degreesC to +85 degreesC
• Relative Humidity (non-condensing): 0 to 95%
• MTBF:< 100,000 hours
• Power Supply: 12VDC @ 150mA
• Power Connector: 2 pin terminal block
• Size: (WxHxL): 1.5" x 1.0" x 3.75"
