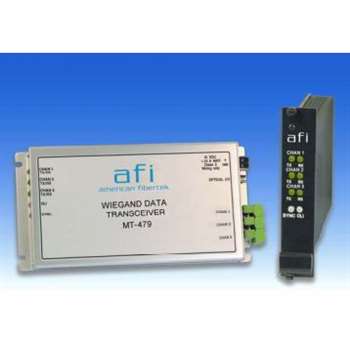

American Fibertek MTX479 Wiegand Data System - Module Tx - Mm 1 F

Features:

• Wiegand D0, D1 Data Interface
• Indicators for Data Tx and Rx
• Only One Fiber Required
• Hot Swappable
• Provides +5V/100mA Output
• Provides LED/Beeper Status
• Provides Bi-directional Relays
• Singlemode Version Available

Specifications:

• Data Format: D0, D1, Common
• LED/Beeper Status Connectors: Terminal Blocks
• Input: Switch Closure to Ground - 5VDC (open), 1mA (closed)
• Output (Dry Contact): 220VDC / 250VAC / 2.0A
• ResponseTime: 2 ms
• Connector: Terminal Block
• Wavelength: 1310 nm
• Source: Laser
• Loss Budget (62/125 u): >15 dB
• Connector: ST
• Voltage: 12 VDC/ 350mA
• Connector: 2 Pin Terminal Block
• Output: +5Vdc at 100mA (Power to Card Reader)
• Power Supply: 12VDC (AFI Part #: PS-12D)
• Temperature: -40 degreesC to 75 degreesC
• Humidity: 5 to 95 %
• Dimensions: 8-1/8" x 4-1/8" x 1-1/8"
