American Fibertek MX-1G | Media Converter 10/100/1000Base-X With Op...
Description
Description

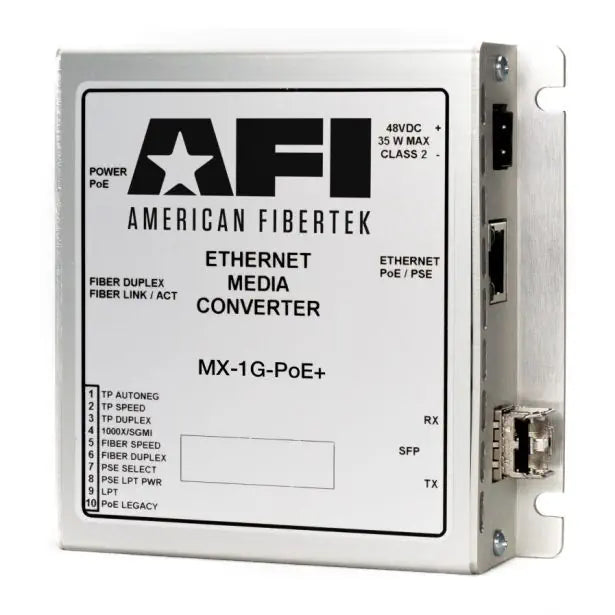

The American Fibertek Series MX-1G transmits and receives a 10/100/1000Base-T Ethernet signal at the RJ45 port and a 100 BaseFX or 1000Base-X at the fiber port over 1 or 2 single-mode or multimode fibers using an SFP optical component. The SFP optic is ordered separately. Diagnostic indicators provide a quick visual indication of system status. The system is designed to be completely transparent with an auto negotiation feature which automatically configures the unit for the correct speed (10/100/1000Base-T). Auto MDI/MDIX operation eliminates the potential need for crossover cables. However, data configuration switches are available to force the system into specific operating modes if required.
American Fibertek - MX-1G - Features
- SFP Port 1000 Base Fiber
- IEEE 802.3, 802.3af and 802.3at Compliant
- Auto MDI / MDIX Detection
- Auto Negotiate 10/100/1000 Port
- Link and Activity Indicators for UTP and Fiber Ports
- Data Configuration Switches
- Active Link Pass Through LPT
- Supports Jumbo frames
Specifications
Specifications
American Fibertek - MX-1G - Specifications
| Brand Name | American Fibertek |
|---|---|
| Manufacturer Part Number | MX-1G |
| Item Description | Media Converter 10/100/1000Base-X With Open Sfp Port |
| Data Rate | 10/100/1000 Mbps |
| Connection Type | SFP |
| Voltage | 48-56VDC |
