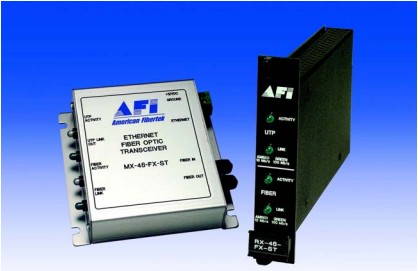

American Fibertek RX50FXST 2 Fiber 10/100 D/R Ethernet, 2Km, Mm Sup

The American Fibertek RX-50 Series transmits and receives (2) copper 10/100 Base-T Ethernet signals at the RJ45 ports and (2) optical 100 BaseFX at the fiber ports. Both single fiber and dual fiber versions of the optics are available. A single rackcard unit is capable of connecting up to (2) Series MX/MTX-5 (on a separate datasheet) modules which provides the benefit of reducing the number of rackcards and corresponding subrack space and power supplies.

Features:

• Complete Fiber Optic to Twisted Pair Media Interface
• Auto Negotiate 10/100 Ports
• Auto MDI/MDIX Detection
• Link and Activity Indicators for UTP and Fiber Ports
• Singlemode and Multimode Fiber Versions Available

Specifications:

• Auto negotiated: 10/100 Mb/s
• Connector: RJ45
• PoE (2 RJ45 ports): 802.3af
• Voltage: 48 VDC
• Current: 200 mA
• Connector: 2 Pin Terminal Block
• Temperature: -40 deg C to +75 deg C
• Humidity: 5 % to 95 %
