American Power Conversion E3SUPS40KFBS | Easy UPS 3S 40 kVA 208V 3:...
Description
Description

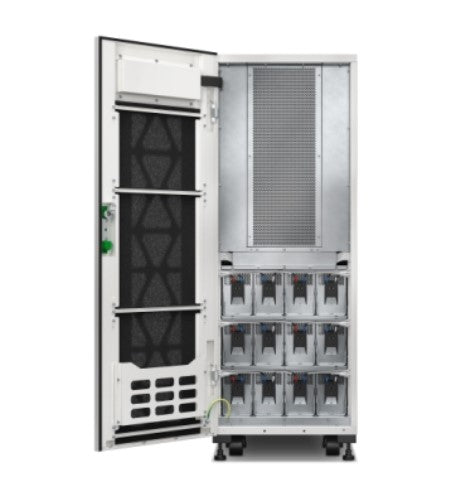

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 40 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
American Power Conversion - E3SUPS40KFBS - Features
- Easy UPS 3S is easy to install and start up
- Parallel up to 4 UPSs for capacity or redundancy
- Extended runtime options available
- EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
Specifications
Specifications
American Power Conversion - E3SUPS40KFBS - Specifications
| Lead time | Usually Ships within 2 Weeks |
|---|---|
| Main Input Voltage | 208 V AC 3 phase |
| Other Input Voltages | 220 V |
| Maximum Input Current per Phase | 120 A |
| Maximum Short Circuit Withstand (Icw) | 10 kA |
| Input Total Harmonic Distortion | Less than 4% for full load |
| Load power factor | From 0.7 leading to 0.7 lagging without any derating |
| Input Frequency | 40 - 70 Hz |
| Output voltage | 208 V AC 3 phase |
| Other Output Voltages | 220 V |
| Rated power in W | 40 kW |
| Rated power in VA | 40 kVA |
| Bypass type | Built-in Static Bypass |
| Maximum configurable power in VA | 40 kVA |
| Max Configurable Power (Watts) | 40 kW |
| Overload Operation | 10 minutes @ 125% and 60 seconds @ 150% |
| Topology | Double Conversion Online |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Maximum short-circuit current | 10 kA |
| Battery Size | Lead-acid internal |
| Control panel | Touch Screen LCD User Interface |
| color | White RAL 9003 |
| Height | 55.1 in (140 cm) |
| Width | 15.0 in (38 cm) |
| Depth | 43.0 in (109.2 cm) |
| Product Weight | 412.3 lb(US) (187 kg) |
| Range of Product | Easy UPS 3S |
| Product or Component Type | Uninterruptible power supply (UPS) |
| Product Certifications | UL 1778 5th edition, IEC 62040-2, FCC part 15 class B, IEC 62040-3, cTUVus, ISTA 2B |
