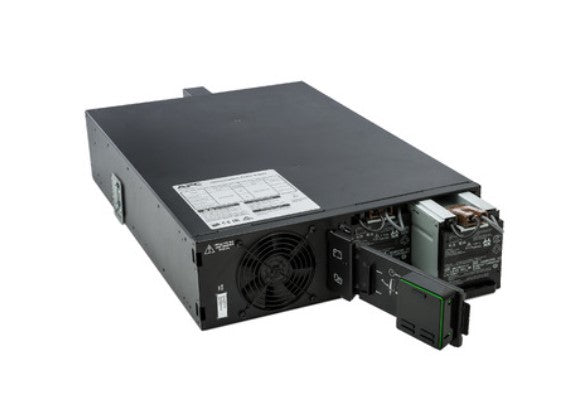

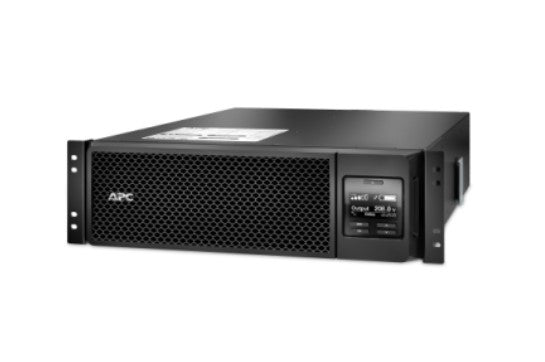

American Power Conversion SRT5KRMXLT-A | Smart-UPS On-Line, 5.4kVA, Rackmount 3U, 208V, 2x L6-20R+2x L6-30R NEMA outlets
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
American Power Conversion SRT5KRMXLT-A | Smart-UPS On-Line, 5.4kVA,...
Description
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5.4kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
American Power Conversion - SRT5KRMXLT-A - Features
- 5.4kVA/4.8kW online double-conversion (pure sine wave output) UPS in a 3U rackmount form factor
- Ideal for protecting critical servers, storage, networking equipment, medical labs, and light industrial applications
- Includes a Network Management Card for remote monitoring and control
- SmartSlot allows for additional communication options
- Extended runtime capability not currently available for this Made in America UPS
Specifications
Specifications
American Power Conversion - SRT5KRMXLT-A - Specifications
| Main Input Voltage | 208 V AC 1 phase |
|---|---|
| Other Input Voltages | 240 V |
| Input Connection Type | NEMA L6-30P |
| Efficiency at full load | 100...275 V adjustable (half load) |
| Input Frequency | 40 - 70 Hz auto-sensing |
| Output voltage | 208 V AC 1 phase |
| Other Output Voltages | 220 V |
| Rated power in W | 4800 W |
| Rated power in VA | 5400 VA |

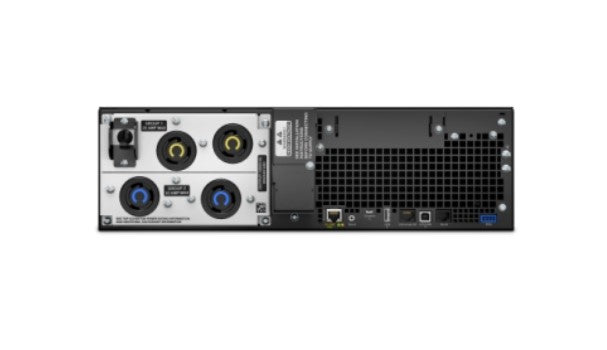

| output connection type | 2 NEMA L6-20R 2 NEMA L6-30R |
| Crest factor | 03:01:00 |
| Harmonic distortion | Less than 2% |
| Maximum configurable power in VA | 5400 VA |
| Max Configurable Power (Watts) | 4800 W |
| Waveform Type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery Size | Lead-acid internal included |
| Free slots | 1 |
| Emergency Power Off (EPO) | Yes |
| Pre-Installed SmartSlot Cards | Network management card 3 with environmental monitoring |
| UPS connectivity | Serial port, USB port, Available expansion slot, Pre-installed network management card 3 |
| Surge energy rating | 480 J |
| Number of rack unit | 3U |
| Cable length | 10.007 ft (3.05 m) |
| Number of cables | 1 |
| color | Black |

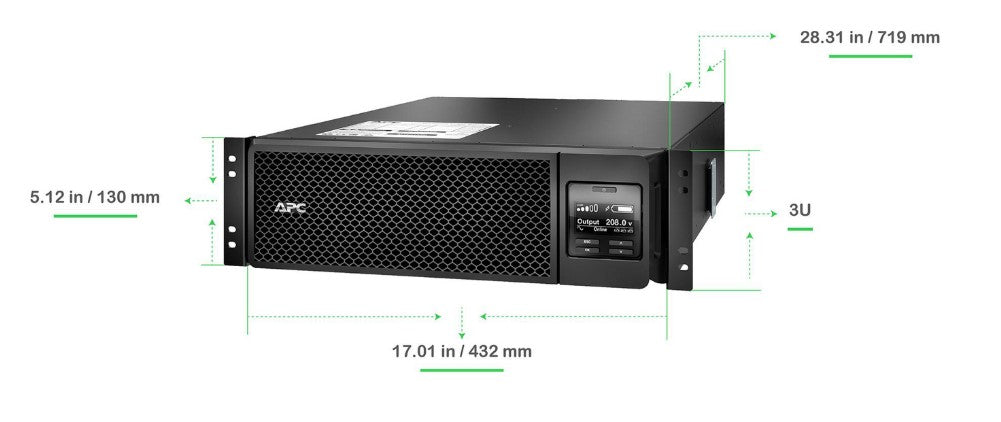

| Height | 5.1 in (130 mm) |
| Width | 17.008 in (432 mm) |
| Depth | 28.3 in (719 mm) |
