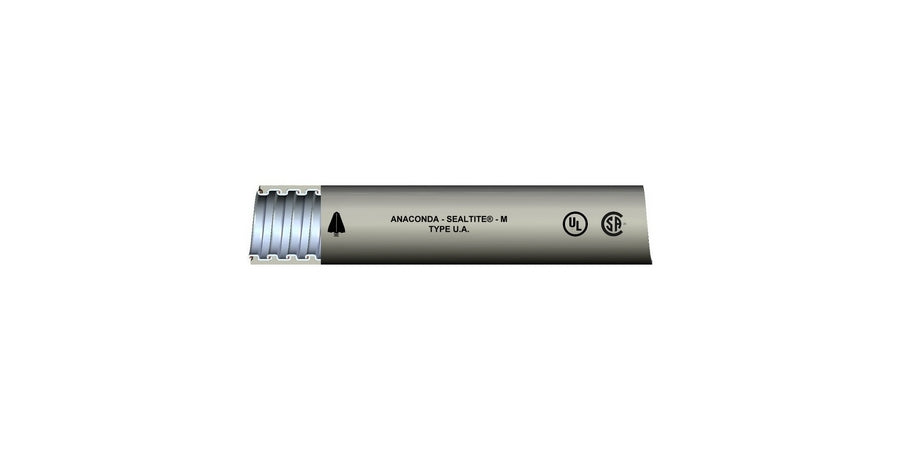

Anamet Electrical 34203 | Liquid-Tight Flexible Metal Conduit, 3/8 in., 0.484 to 0.504 in. ID
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Anamet Electrical 34203 | Liquid-Tight Flexible Metal Conduit, 3/8 ...
Description
Description
Conduit shall be anaconda SEALTITE type UA. Conduit shall provide a flexible liquid-tight raceway for wiring and shall be constructed of continuously interlocked hot dipped zinc galvanized steel core with an integral bonding wire in sizes 3/8 in. thru 1-1/4 in. Conduit shall have a sunlight resistant and flame retardant PVC jacket in electrical trade sizes 3/8 in. thru 4 in. Conduit shall be UL listed, CSA certified and IP 67 rated when installed with approved end connectors.
Specifications
Specifications
Anamet Electrical - 34203 - Product Categories
- Enclosures and Cable Routing
- Conduit and Cable Support
- Liquid-tight Conduit
- Liquid-tight Flexible Metal Conduit (LFMC)
Anamet Electrical - 34203 - Specifications
| Manufacturer Name | Anamet Electrical |
|---|---|
| Manufacturer Part Number | 34203 |
| Item Description | Liquid-Tight Flexible Metal Conduit, 3/8 in., 0.484 to 0.504 in. ID |
| Bend Radius | 3 in. |
| COLOR | GREY |
| Color | Gray |
| Conduit Type | Liquidtight Flexible Metallic |
| Core | Steel, Galvanized |
| Finish | Hot-Dipped Galvanized Zinc |
| Inside Diameter | 0.484 to 0.504 in. |
| Jacket Material | PVC |
| Jacket | PVC |
| LOCATION | INDOOR |
| Length | 1500 ft. |
| Material | Steel |
| Operating Temperature - Maximum | 176 F |
| Operating Temperature - Minimum | -40 F |
| Outside Diameter | 0.71 in. |
| Product Type | Type UA Liquid-Tight Flexible Metal Conduit |
| Special Rating | IP66, IP67 |
| Style | Ty-UA Conduit |
| Temperature | -20 C to 60 C |
| Trade Size | 3/8 in. |
