APC ACF002 | Rack Air Distribution Unit 2U 208/230V 50/60HZ
Description
Description

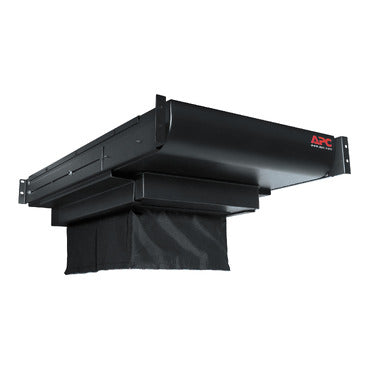

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
APC - ACF002 - Features
- Mounting rails - Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19 inch EIA-310-D enclosures
- Fan control switches - Users can turn one or both fans on and off depending on the heat load
- Fan guards - A safety measure that provides protection from the fan opening by covering the inlet
- Dual fans - Provides fault tolerance in the event of a fan failure
- Promotes proper airflow - Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement
- Increases airflow - Provides proper intake temperatures, increasing equipment life
- Easy to install - Innovative design allows for fast, easy installation by almost anybody
- Dual A-B power inputs - Draws power from the UPS for power protection ith dual feeds for redundancy
Specifications
Specifications
APC - ACF002 - Specifications
| Main Input Voltage | 208 V 230 V |
|---|---|
| Number of rack unit | 2U |
| Color | Black |
| Height | 3.50 in (8.9 cm) |
| Width | 16.61 in (42.2 cm) |
| Depth | 29.02 in (73.7 cm) |
| Net Weight | 41.09 lb(US) (18.64 kg) |
| Mounting Mode | Rack-mounted |
| GTIN | 731304120827 |
| Package 1 Height | 10.00 in (25.4 cm) |
| Package 1 Width | 32.99 in (83.8 cm) |
| Package 1 Length | 32.99 in (83.8 cm) |
| Package 1 Weight | 59.13 lb(US) (26.82 kg) |
| Unspsc Code | 24102001 |
