Brand: American Power Conversion (Apc) | SKU: 10314463

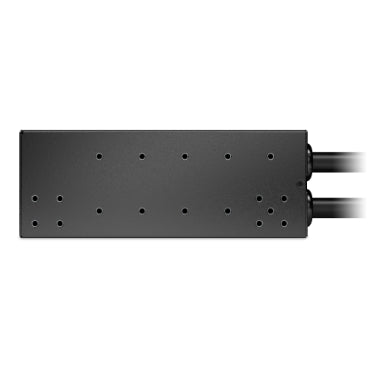

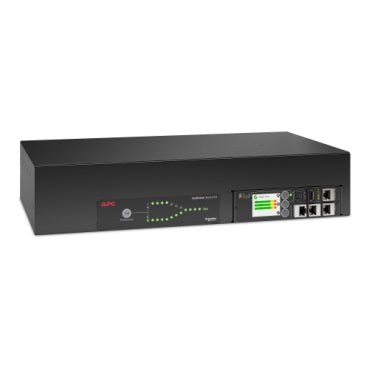

APC AP4424A | Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 Out, 50/60 Hz

Regular price $3,227.50
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

APC AP4424A | Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 Out, 50/60 Hz

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

APC - AP4424A - Features

  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critcal loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms

Specifications

APC - AP4424A - Specifications

Main Input Voltage230 V AC 1 phase
Product or Component TypeAutomatic transfer switch
Main Output Voltage230 V AC 1 phase
Provided EquipmentMounting Hardware, Rack Mounting brackets
Height3.46 in (8.8 cm)
Width17.01 in (43.2 cm)
Depth9.29 in (23.6 cm)
Net Weight15.30 lb (US) (6.94 kg)
ColorBlack
Mounting ModeRack-mounted
Mounting positionHorizontal
Input Frequency50/60 Hz
Protection TypeCircuit breaker
GTIN731304432456
