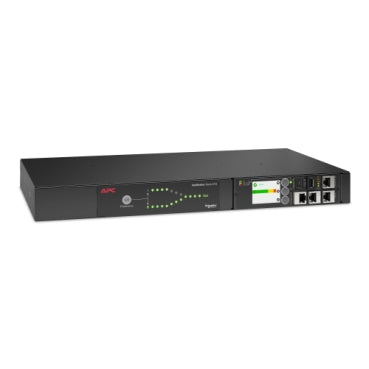

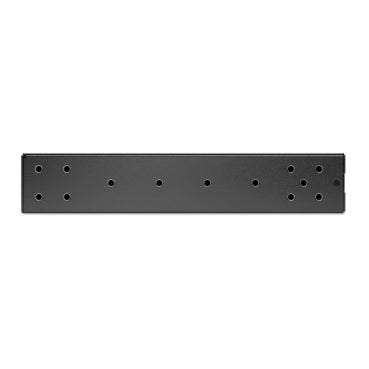

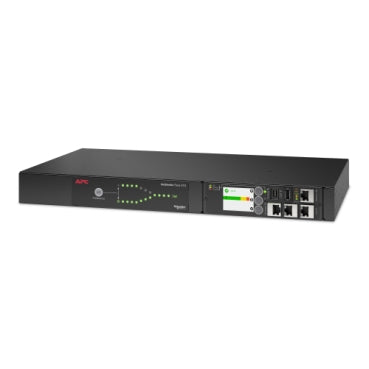

APC AP4434A | Netshelter Rack Automatic Transfer Switch, 1U, 20 A, 208V, 2 C20 IN, 8 C13, 1 C19 Out, 50/60Hz
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
APC AP4434A | Netshelter Rack Automatic Transfer Switch, 1U, 20 A, ...
Description
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4434A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4434A is single phase 1U Rack ATS with 20A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C20- inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
APC - AP4434A - Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
Specifications
Specifications
APC - AP4434A - Specifications
| Main Input Voltage | 208 V AC 1 phase |
|---|---|
| Product or Component Type | Automatic transfer switch |
| Main Output Voltage | 208 V AC 1 phase |
| Provided Equipment | Mounting Hardware, Rack Mounting brackets |
| Height | 1.73 in (4.4 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 9.29 in (23.6 cm) |
| Net Weight | 8.25 lb (US) (3.74 kg) |
| Color | Black |
| Mounting Mode | Rack-mounted |
| Mounting position | Horizontal |
| Input Frequency | 50/60 Hz |
| Protection Type | Without Circuit breaker |
| GTIN | 731304432500 |
