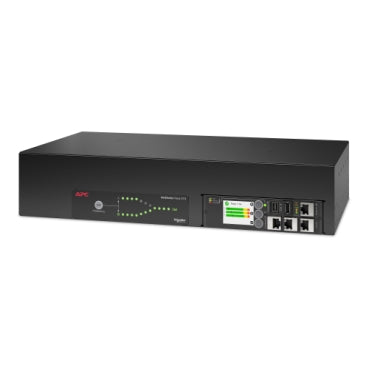

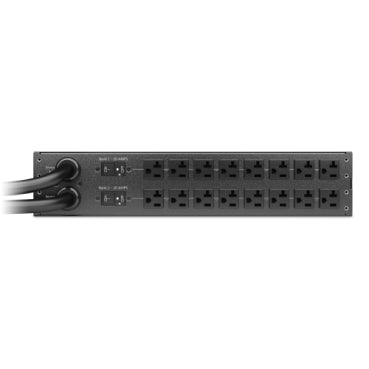

APC AP4453A | NetShelter Rack Automatic Transfer Switch, 2U, 30A, 120V, 2 L5-30P IN, 16 5-20R Out, 50/60Hz
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
APC AP4453A | NetShelter Rack Automatic Transfer Switch, 2U, 30A, 1...
Description
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4453A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4452A is single phase 1U Rack ATS with 20A rated current, 120V rated voltage and 1920VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with 2 NEMA L5-30P inlet and 10 NEMA 5-20R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
APC - AP4453A - Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
Specifications
Specifications
APC - AP4453A - Specifications
| Main Input Voltage | 120 V AC 1 phase |
|---|---|
| Product or Component Type | Automatic transfer switch |
| Main Output Voltage | 120 V AC 1 phase |
| Provided Equipment | Mounting Hardware, Rack Mounting brackets |
| Height | 3.46 in (8.8 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 9.29 in (23.6 cm) |
| Net Weight | 13.96 lb (US) (6.33 kg) |
| Color | Black |
| Mounting Mode | Rack-mounted |
| Mounting position | Horizontal |
| Input Frequency | 50/60 Hz |
| Protection Type | Circuit breaker |
| GTIN | 731304432531 |
