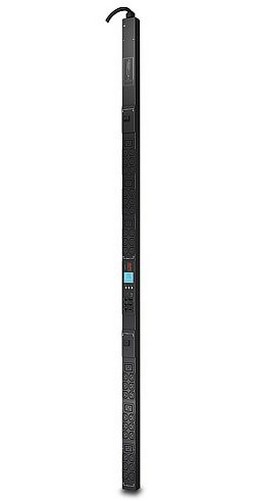

APC AP8853 Rack PDU 2G, Metered, ZeroU, 32A, 230V, (36) C13 & (6) C19

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specs

Manufacturer American Power Conversion (Apc)

Condition New

Output

Nominal Output Voltage - 230V

Maximum Total Current Draw per Phase - 32A

Output Connections (36) IEC 320 C13 (6) IEC 320 C19

Overload Protection - Yes

Cord Length - 3 meters

Input

Nominal Input Voltage - 200V,208V,230V

Input Frequency - 50/60 Hz

Input Connections - IEC 309 32A 2P+E

Cord Length - 3 meters

Number of Power Cords - 1

Acceptable Input Voltage - 220-240 VAC

Maximum Line Current per phase - 32A

Maximum Input Current per phase - 32A

Physical

Maximum Height - 1791.00 mm

Maximum Width - 56.00 mm

Maximum Depth - 44.00 mm

Color - Black

Environmental

Operating Environment - -5 - 45 °C

Operating Relative Humidity - 5 - 95%

Operating Elevation - 0-3000 meters

Storage Temperature - -25 - 65 °C

Storage Relative Humidity - 5 - 95%

Storage Elevation - 0-15000 meters
