Brand: American Power Conversion (Apc)
|
SKU:
10146937
APC GVSUPS20KB4FS | Galaxy VS UPS 20kW 208V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5x8
Regular price
$37,014.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
APC GVSUPS20KB4FS | Galaxy VS UPS 20kW 208V, 2 internal 9Ah smart m...
Regular price
$37,014.69
Unit price
Brand: American Power Conversion (Apc)
|
SKU:
10146937
Regular price
$37,014.69
Unit price
Shipping calculated at checkout.
Description
Description

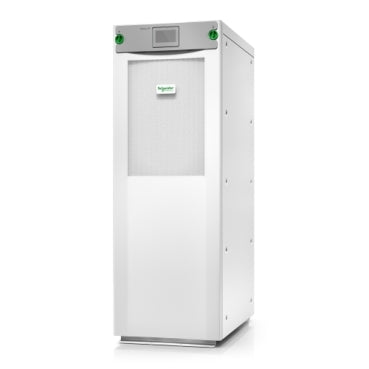

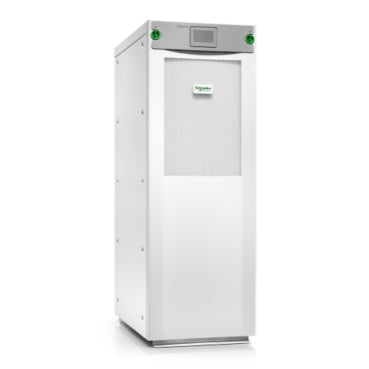

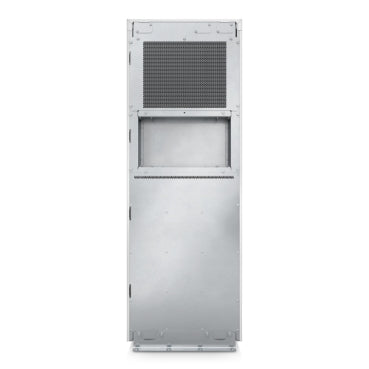

APC GVSUPS20KB4FS | Galaxy VS UPS 20kW 208V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5x8
Highly efficient, easy-to-deploy 20kW, 208V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
Specifications
Specifications
APC - GVSUPS20KB4FS - Specifications
| Main Input Voltage | 208 V 3 phase |
|---|---|
| Battery Voltage | 480V |
| Kw Rating | 20 kW |
| Other Output Voltage | 200 V |
| Range of Product | Galaxy VS |
| Battery Voltage | 480V |
| Colour | White |
| Height | 58.46 in (148.5 cm) |
| Width | 20.51 in (52.1 cm) |
| Depth | 33.35 in (84.7 cm) |
| Net Weight | 1014.1 lb(US) (460 kg) |
| Input Frequency | 40 - 70 Hz |
| Relative Humidity | 0…95 % non-condensing |
| IP degree of protection | IP20 |
| GTIN | 731304641711 |
