Brand: American Power Conversion (Apc) | SKU: 10567080

APC NSYSFEB | Lifting Eyebolts, PanelSeT SFN, Spacial SF, steel , M12 , set of 4

$24.18

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

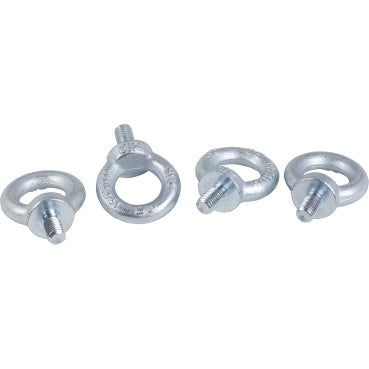

APC NSYSFEB | Lifting Eyebolts, PanelSeT SFN, Spacial SF, steel , M12 , set of 4

Set of M12 lifting eyebolt for Spacial SF/SFHD/SFM, Prisma PH. H is62.5 x W is55 x D is24 mm. Mounting on enclosure top. Support directly in the axis of the uprights. Permanent permissible load 1360 kg slinging at 60°. Cast steel, galvanized surfacefinish.

Specifications

APC - NSYSFEB - Specifications

Area	PanelSeT
category	Lifting accessory
Product or Component Type	Lifting eye
Application	Multi-purpose
Mounting Location	Enclosure top
Material	cast steel
Surface Finish	Galvanized
Fixing mode	Screwed
Permanent permissible load	749.6 lb(US) (340 kg) for 1 eyebolt vertical direction
Height	2.5 in (62.5 mm)
Width	2.2 in (55 mm)
Depth	0.9 in (24 mm)
Diameter	1.1 in (29 mm)
GTIN	3606485131542

Documents and Downloads

APC NSYSFEB Data Sheet
