Brand: American Power Conversion (Apc)
|
SKU:
543001

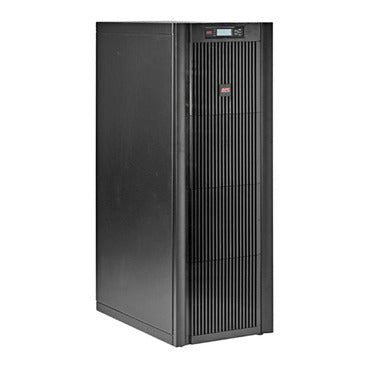

APC SUVTP10KH4B4S | Smart-UPS VT 10kVA 400V w/4 Batt Mod, Start-Up 5X8, Int Maint Bypass, Parallel Capable
Regular price
$20,431.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
APC SUVTP10KH4B4S | Smart-UPS VT 10kVA 400V w/4 Batt Mod, Start-Up ...
Regular price
$20,431.07
Unit price
Brand: American Power Conversion (Apc)
|
SKU:
543001
Regular price
$20,431.07
Unit price
Shipping calculated at checkout.
Description
Description
APC SUVTP10KH4B4S | Smart-UPS VT 10kVA 400V w/4 Batt Mod, Start-Up 5X8, Int Maint Bypass, Parallel Capable
Specifications
Specifications
APC - SUVTP10KH4B4S - Specifications
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| rated power in W | 8000 W |
| rated power in VA | 10000 VA |
| Extended runtime | 1 |
| Number of battery filled slots | 4 |
| Number of battery free slots | 0 |
| Battery recharge time | 5 h |
| Number of battery replacement quantity | 4 |
| Battery life | 3…5 year(s) |
| Discharge battery voltage | +/- 154 V |
| Battery charger power | 1976 W rated |
| Colour | Black |
| Height | 149 cm |
| Width | 52.3 cm |
| Depth | 84.2 cm |
| Net weight | 599.09 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Maximum input current | 14 A |
| Input Power Factor at Full Load | 0.98 |
| Switching current capacity | 20 A |
| Input voltage limits | 304...477 V |
| Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| Network frequency | 40...70 Hz auto-sensing |
| Crest factor | 03:01:00 |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 10000 VA |
| Maximum configurable power in W | 8000 W |
| Maximum output current | 16 A |
| Wave type | Sine wave |
| Output frequency | 47...53 Hz for 50 Hz nominal sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
| Acoustic level | 51.3 dBA |
| Heat dissipation | 1774 Btu/h |
| Operating altitude | 0...3333 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -50…40 °C |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 164.3 cm |
| Package 1 Width | 106.2 cm |
| Package 1 Length | 65 cm |
| Package 1 Weight | 630 kg |
