Brand: American Power Conversion (Apc)
|
SKU:
543002

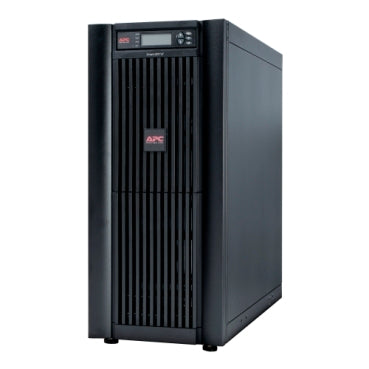

APC SUVTP10KHS | Smart-UPS VT 10kVA 400V, w/Start-Up 5X8, Internal Maintenance Bypass, & Parallel Capability
Regular price
$15,424.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
APC SUVTP10KHS | Smart-UPS VT 10kVA 400V, w/Start-Up 5X8, Internal ...
Regular price
$15,424.27
Unit price
Brand: American Power Conversion (Apc)
|
SKU:
543002
Regular price
$15,424.27
Unit price
Shipping calculated at checkout.
Description
Description
APC SUVTP10KHS | Smart-UPS VT 10kVA 400V, w/Start-Up 5X8, Internal Maintenance Bypass, & Parallel Capability
Specifications
Specifications
APC - SUVTP10KHS - Specifications
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| rated power in W | 8000 W |
| rated power in VA | 10000 VA |
| Colour | Black |
| Height | 82.3 cm |
| Width | 35.2 cm |
| Depth | 81.3 cm |
| Net weight | 134 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Maximum input current | 14 A |
| Input Power Factor at Full Load | 0.98 |
| Switching current capacity | 20 A |
| Input voltage limits | 304...477 V |
| Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| Network frequency | 47...70 Hz auto-sensing |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 10000 VA |
| Maximum configurable power in W | 8000 W |
| Maximum output current | 16 A |
| Wave type | Sine wave |
| Output frequency | 47...53 Hz for 50 Hz nominal sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
| Acoustic level | 64 dBA |
| Heat dissipation | 1774 Btu/h |
| Operating altitude | 0...3333 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -50…40 °C |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 129 cm |
| Package 1 Width | 111 cm |
| Package 1 Length | 72 cm |
| Package 1 Weight | 173 kg |
