Brand: American Power Conversion (Apc)
|
SKU:
459940

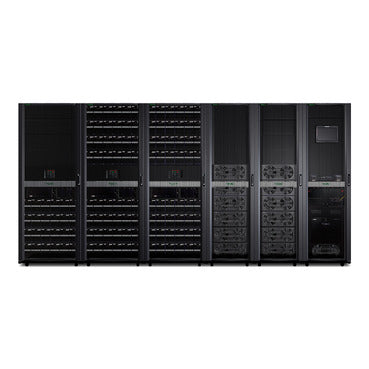

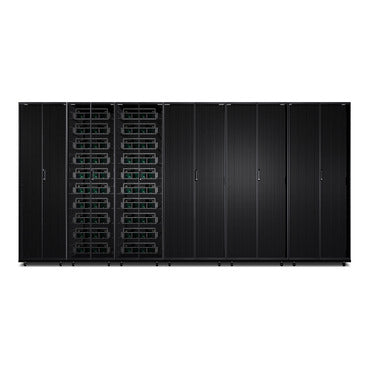

APC SY300K500D | Symmetra PX 300kW Scalable to 500kW without Maintenance Bypass or Distribution-Parallel Capable
Regular price
$3,979,206.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
APC SY300K500D | Symmetra PX 300kW Scalable to 500kW without Mainte...
Regular price
$3,979,206.18
Unit price
Brand: American Power Conversion (Apc)
|
SKU:
459940
Regular price
$3,979,206.18
Unit price
Shipping calculated at checkout.
Description
Description
APC SY300K500D | Symmetra PX 300kW Scalable to 500kW without Maintenance Bypass or Distribution-Parallel Capable
Specifications
Specifications
APC - SY300K500D - Specifications
| Main Input Voltage | 480 V 3 phase 400 V 3 phase |
|---|---|
| Other Input Voltage | 415 V |
| Main Output Voltage | 480 V 3 phase 400 V 3 phase |
| Other Output Voltage | 415 V |
| Kw Rating | 300000 W |
| rated power in VA | 300000 VA |
| Output connector type | Hard Wire 4-wire (3PH + G) 1 Hard Wire 5-wire (3PH + N + G) 1 |
| Battery Type | VRLA |
| Included Battery Modules | 20 |
| Battery Slots Empty | 24 |
| Typical recharge time | 3.5 h |
| RBC Quantity | 6 |
| Overload Operation | 10 minutes @ 125% and 60 seconds @ 150% |
| Battery Charge Power (Watts) | 29538 W rated |
| Battery design life | 5…8 year(s) |
| Bypass Voltage Tolerance | +/-10% settable from +/-4/6/8 and 10% |
| color | Black |
| Height | 78.39 in (199.1 cm) |
| Width | 159.45 in (405 cm) |
| Depth | 42.13 in (107 cm) |
| Net Weight | 12372.4 lb(US) (5612 kg) |
| Max Configurable Power (Watts) | 500000 W |
| Harmonic distortion | Less than 2% |
| Topology | Double Conversion Online |
| Wave type | Sine wave |
| Output voltage tolerance | +/-1% static and +/- 5% at 100% load step |
| Output Voltage THD | < 2% linear load and < 3% non-linear load |
| Overload Operation | 10 minutes @ 125% and 60 seconds @ 150% |
| Bypass type | Built-in Static Bypass |
| Efficiency at full load | 96 % in battery operation) |
| Maximum configurable power in VA | 500000 VA |
| Transfer Time | 2ms typical |
| Ambient air temperature for operation | 32…104 °F (0…40 °C) |
| Relative Humidity | 0…95 % |
| Operating altitude | 0...3333 ft |
| Ambient Air Temperature for Storage | 5…104 °F (-15…40 °C) |
| Storage Relative Humidity | 0…95 % |
| Acoustic level | 54 dBA |
| Online Thermal Dissipation | 37136 Btu/h |
| NEMA degree of protection | NEMA 1 |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 84.65 in (215 cm) |
| Package 1 Width | 50.00 in (127 cm) |
| Package 1 Length | 235.43 in (598 cm) |
| Package 1 Weight | 13620.2 lb(US) (6178 kg) |
| Type | Uninterruptible Power Supply |
| Unspsc Code | 39121011 |
