Arlington 720DB | GROUND CLAMP DIRECT BURIAL
Regular price
$12.16
Unit price
Brand: Arlington Industries Inc
|
SKU:
1027154
Regular price
$12.16
Unit price
Description
Description

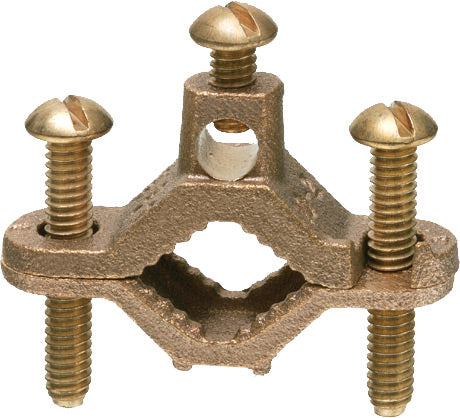

Arlington 720DB | GROUND CLAMP DIRECT BURIAL
Solid Bronze Body, Bronze Screw Material; 2.275 Inch Width Size; Bare Wire to Pipe, Direct Burial Used on; (2) Screw Connector to Pipe, (1) Screw Wire Connector Installation; UL, CSA Approval; 10 to 2 AWG Conductor Size; 0.675 to 1.85 Inch Rod Size
Specifications
Specifications
Arlington - 720DB - Additional Information
- APPLICABLE STANDARD NEMA FB-1
Arlington - 720DB - Specifications
| Type | ACCESSORY |
|---|---|
| UNSPSC Code | 39121311 |
| Data Sheets | TECHNICAL DRAWING |
| UPC | 1899700721 |
| Approval | UL, CSA |
| Used On | Bare Wire to Pipe, Direct Burial |
| Item Number | 721 |
| Catalog Number | 720DB |
| Conductor Size | 10 to 2 AWG |
| IPS Size | 1/2 to 1 Inch |
| Rod Size | 0.675 to 1.85 Inch |
| Size | 2.275 Inch Width |
| Installation | (2) Screw Connector to Pipe, (1) Screw Wire Connector |
| Material | 1899700721 |
| CATALOG DESCRIPTION | SOLID BRONZE WITH BRONZE SCREWS, BARE WIRE GROUND CLAMP. PIPE SIZE - 1/2" TO 1", WIRE RANGE - #10 TO #2. APPROVED FOR DIRECT BURIAL. |
| Category | Rigid Conduit Fittings - Steel |
