Arlington 720Z | GROUND CLAMP ZINC PLATE
Regular price
$3.82
Unit price
Brand: Arlington Industries Inc
|
SKU:
1027158
Regular price
$3.82
Unit price
Description
Description

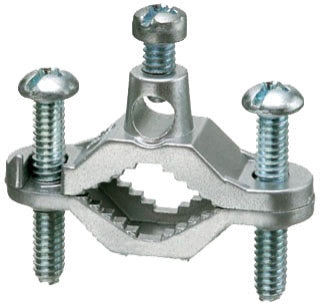

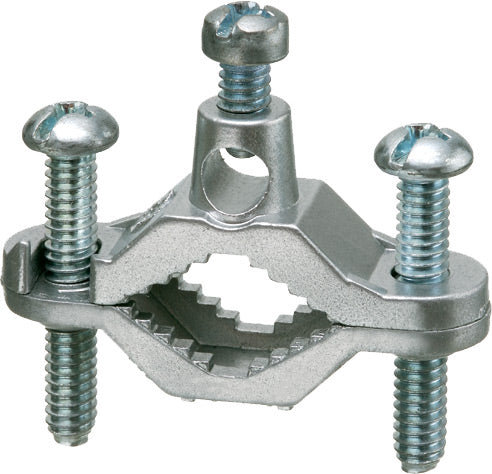

Arlington 720Z | GROUND CLAMP ZINC PLATE
Die Cast Zinc Material; 2.225 Inch Width Size; Bare Wire to Pipe Used on; (2) Screw Connector to Pipe, (1) Screw Wire Connector Installation; UL, CSA Approval; 8 to 2 AWG Conductor Size; 0.545 to 1.575 Inch Rod Size; 1/2 to 1 Inch IPS Size
Specifications
Specifications
Arlington - 720Z - Additional Information
- APPLICABLE STANDARD NEMA FB-1
Arlington - 720Z - Specifications
| Type | ACCESSORY |
|---|---|
| UNSPSC Code | 39121311 |
| Data Sheets | TECHNICAL DRAWING |
| UPC | 1899772080 |
| Approval | UL, CSA |
| Used On | Bare Wire to Pipe |
| Item Number | 72080 |
| Catalog Number | 720Z |
| Conductor Size | 8 to 2 AWG |
| IPS Size | 1/2 to 1 Inch |
| Rod Size | 0.545 to 1.575 Inch |
| Size | 2.225 Inch Width |
| Installation | (2) Screw Connector to Pipe, (1) Screw Wire Connector |
| Material | 1899772080 |
| CATALOG DESCRIPTION | BARE WIRE GROUND CLAMP ZINC DIE CAST. PIPE SIZE 1/2" TO 1", WIRE RANGE #8 TO #2. |
| Category | Rigid Conduit Fittings - Steel |
