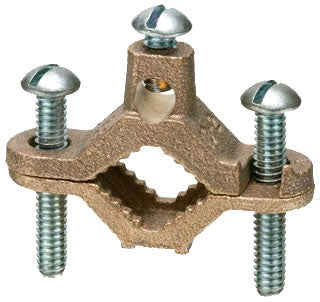

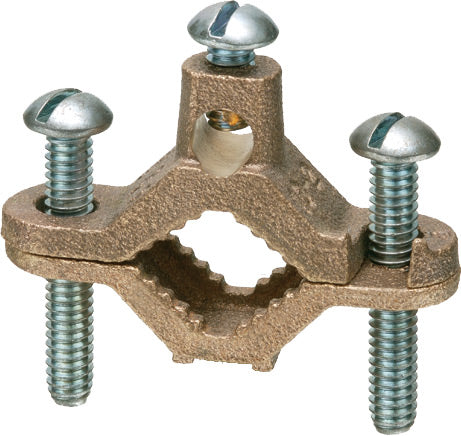

Arlington 723B | 4-1/2" To 6" Bronze Ground Clamp
Regular price
$101.87
Unit price
Brand: Arlington Industries Inc
|
SKU:
1027162
Regular price
$101.87
Unit price
Description
Description
Arlington 723B | 4-1/2" TO 6" BRONZE GROUND CLAMP
Solid Brass Body, Steel Screw Material; 8.375 Inch Width X 8.18 Inch Height Size; Bare Wire to Pipe Used on; (2) Screw Connector to Pipe, (1) Screw Wire Connector Installation; UL, CSA Approval; 10 to 2 AWG Conductor Size; 4-1/2 to 6 Inch IPS Size
Specifications
Specifications
Arlington - 723B - Additional Information
- Opening Size 4.5 Inch (Minimum), 8.4 Inch (Maximum)
Arlington - 723B - Specifications
| Type | ACCESSORY |
|---|---|
| UNSPSC Code | 39121311 |
| UPC | 1899707232 |
| Approval | UL, CSA |
| Used On | Bare Wire to Pipe |
| Item Number | 7232 |
| Catalog Number | 723B |
| Brand Name | Arlington |
| Conductor Size | 10 to 2 AWG |
| IPS Size | 4-1/2 to 6 Inch |
| Size | 8.375 Inch Width x 8.18 Inch Height |
| Installation | (2) Screw Connector to Pipe, (1) Screw Wire Connector |
| Material | 1899707232 |
| CATALOG DESCRIPTION | SOLID BRASS WITH GALVANIZED STEEL SCREWS, BARE WIRE GROUND CLAMP. PIPE SIZE - 4-1/2" TO 6", WIRE RANGE - #10 TO #2 |
| Category | Ground Rods & Grounding Systems |
