Arlington 8401 | MC-BX OFFSET THRT OPEN
Regular price
$2.70
Unit price
Brand: Arlington Industries Inc
|
SKU:
1027296
Regular price
$2.70
Unit price
Description
Description

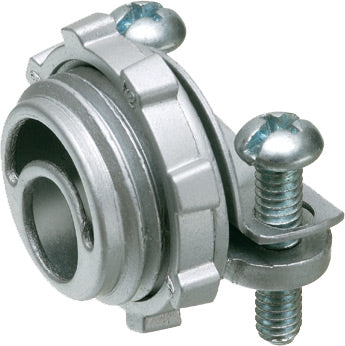

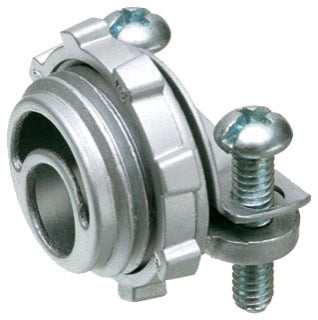

Arlington 8401 | MC-BX OFFSET THRT OPEN
Two Screw Type; Die-Cast Zinc Material; 0.825 Inch; Non-Metallic Cable, Service Entrance Cable, Metal Clad Cable, AC Cable Used on; 0.422 Inch Thread Length; 0.225 Inch min. Opening; 0.612 Inch Max. Opening; (2) 14 to (2) 10 AWG Cable Size
Specifications
Specifications
Arlington - 8401 - Specifications
| Type | ACCESSORY |
|---|---|
| UNSPSC Code | 39121311 |
| UPC | 1899708401 |
| Length | 0.825 Inch |
| Diameter | 1.105 Inch |
| Material | Die-Cast Zinc |
| Approval | UL 514B, UL 388D, UL 372D, UL 388E, UL 282F, CSA |
| Used On | Non-Metallic Cable, Service Entrance Cable, Metal Clad Cable, AC Cable |
| Item Number | 8401 |
| Catalog Number | 8401 |
| Type | Two Screw |
| Cable Size | (2) 14 to (2) 10 AWG |
| Minimum Opening | 1899708401 |
| Maximum Opening | 0.612 Inch |
| Trade Size | 3/8 Inch |
| Thread Length | 0.422 Inch |
