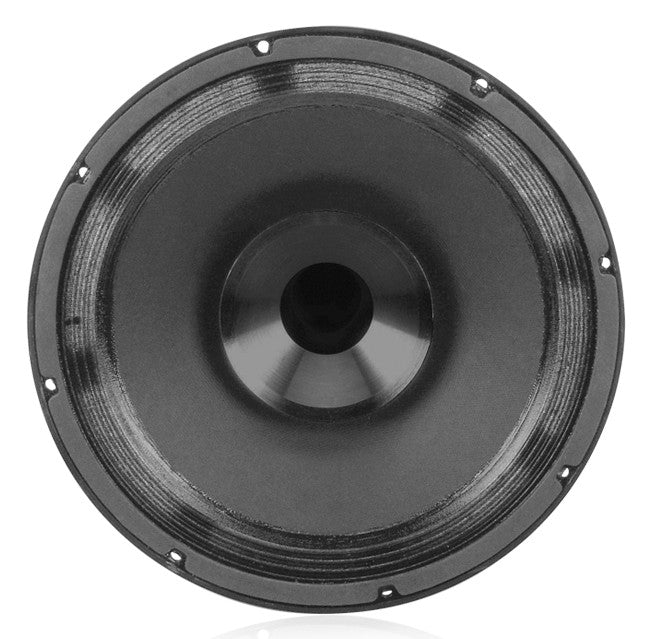

Atlas Sound 12CXT60 | 12 Inch Coaxial Compression Driver with 60-Watt 70V/100V Transformer
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound 12CXT60 | 12 Inch Coaxial Compression Driver with 60-Wa...
Description
Description
Model 12CXT60 is a 250 watt speaker that combines a 12" diameter, low frequency transducer and a 1" exit, true compression driver. With the addition of a factory installed, high efficiency, 60W, 70.7/100V step down line transformer.
The unit features a curvilinear, treated paper cone for lower harmonic distortion and a built-in crossover network for proper frequency transition between the two reproducers.
Model 12CXT60 operates within a frequency response range of 45Hz -18kHz with a sensitivity of 99dB and a dispersion angle of 90° (-6dB/2kHz octave band).
Atlas Sound - 12CXT60 - Features
- 1" Exit Compression Driver Coupled to a Specially Designed Conical Wave-Guide Horn
- 90 Degree Conical Dispersion (2 kHz Octave Band)
- High Efficiency Cone Woofer Optimally Matched to High Frequency Device via a Specially Designed Crossover to Insure Even Transition
- Perfectly Suited for Use with Atlas Sound "Q" Series Enclosures
Specifications
Specifications
Atlas Sound - 12CXT60 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Hardware and Supplies
- Tools and Supplies
- Miscellaneous
- Speakers
- Speaker Components
- Speaker Drivers
Atlas Sound - 12CXT60 - Specifications
| Frequency Response | 45Hz - 18kHz |
|---|---|
| Sensitivity | 95.5dB (1W/1m) Average |
| Power Taps | 7.5, 15, 30, 60 |
| Speaker Type | Compression Driver Coaxial |
| Dispersion | 90° |
| Depth | 8" (20.32 cm) |
| Shipping Weight | 27.00 lbs (12.27 kgs) |
| UNSPSC Code | 39120000 |
Atlas Sound - 12CXT60 - Videos
| Welcome to AtlasIED | Click to View |
|---|---|
| AtlasIED - With Over 2,000 Products... We Have All the Essentials You Need | Click to View |
| AtlasIED's Official Youtube Channel | Click to View |
