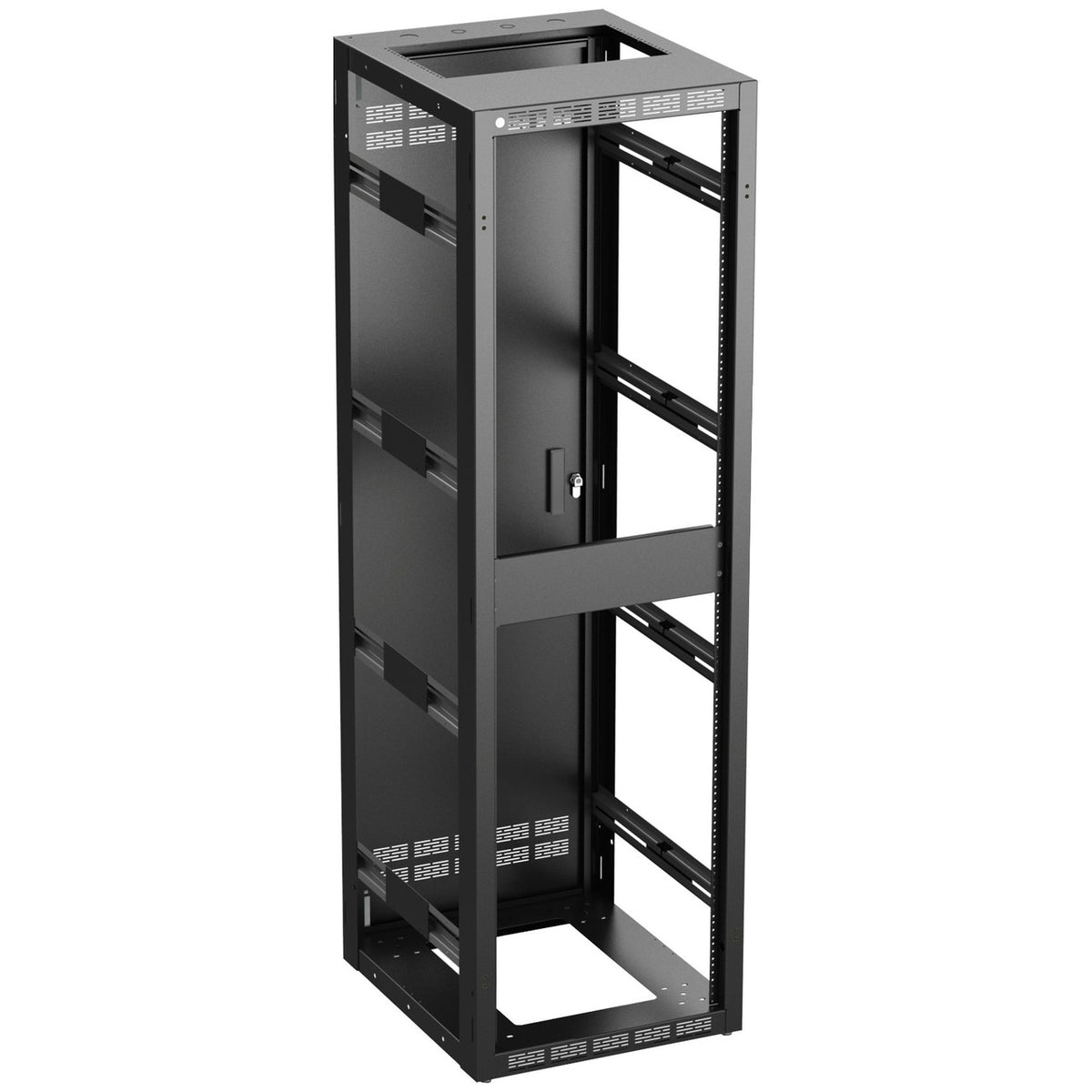

Atlas Sound 540-25 | Stand Alone or Gangable Rack 25 inch Deep, 40RU
Description
Description

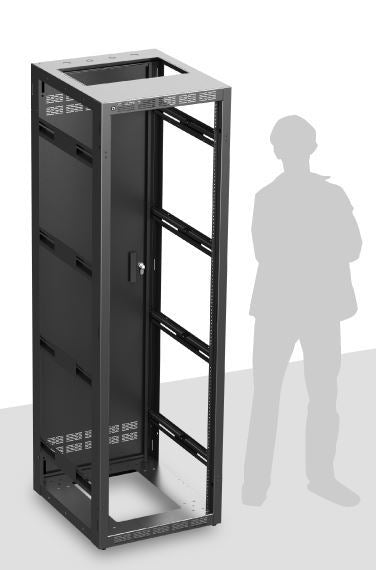

For basic ganging rack requirements, Atlas offers the newly designed 540-25. The 540-25 is 22 5/16" wide, 25 1/2" deep, and has 40 vertical panel spaces. wide, 25 1/2" deep, and has 44 vertical panel spaces. The 500 Series Cabinets are welded 16 Gauge CRS and assembled for immediate use. Rear doors are hung with quick-release spring hinges which allow them to be rotated 180° for right- or left-hand opening. See chart on back for optional front door model numbers. If front door is ordered, it will be keyed differently than the rear door for security. Cabinet frame and rear door are vented to promote air circulation and heat dissipation.
Atlas Sound - 540-25 - Features
- Innovative & Easy Side Panel Attachment
- Perfect for Any Multi-Rack Installation
- Rear Door Offers Right or Left Handed Hinging Capability
- Slotted Mounting Rail Supports Vertical Wire Management and are E.I.A. Spaced for Vertical Mounting of 19" Accessories
- Includes Perforated Front, Rear and Side Vents for Heat Dissipation
- Pre-Drilled to Accept M-1A Cabinet Mount IR Repeater
- UL 1678 Listed
Specifications
Specifications
Atlas Sound - 540-25 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Security
- Video Surveillance
- Video Management Software
- Racks and Cabinets
- Floor Racks
- 500 Series
Atlas Sound - 540-25 - Related Products
- PFD40 - 1 inch Deep Plexiglass Door for 40RU 100, 200, 500, and 700 Series Racks
- PFD40 - 1 inch Deep Micro Perf Door for 40RU 100, 200, 500, and 700 Series Racks
- SFD40 - Solid Front Door for 40RU 100, 200, 500, and 700 Series Racks
- SPS40-25 - 500, 700 Series Side Panels - 40 RU
Atlas Sound - 540-25 - Specifications
| Rack Units | 40 |
|---|---|
| Height | 74 1/4" (188.595 cm) |
| Width | 22 5/16" (56.67 cm) |
| Depth | 25 1/2" (64.77 cm) |
| Usable Depth | 23 9/16" (59.77 cm) |
| Safety Listed | 1678 |
| Type | Channel License |
| UNSPSC Code | 43233203 |
