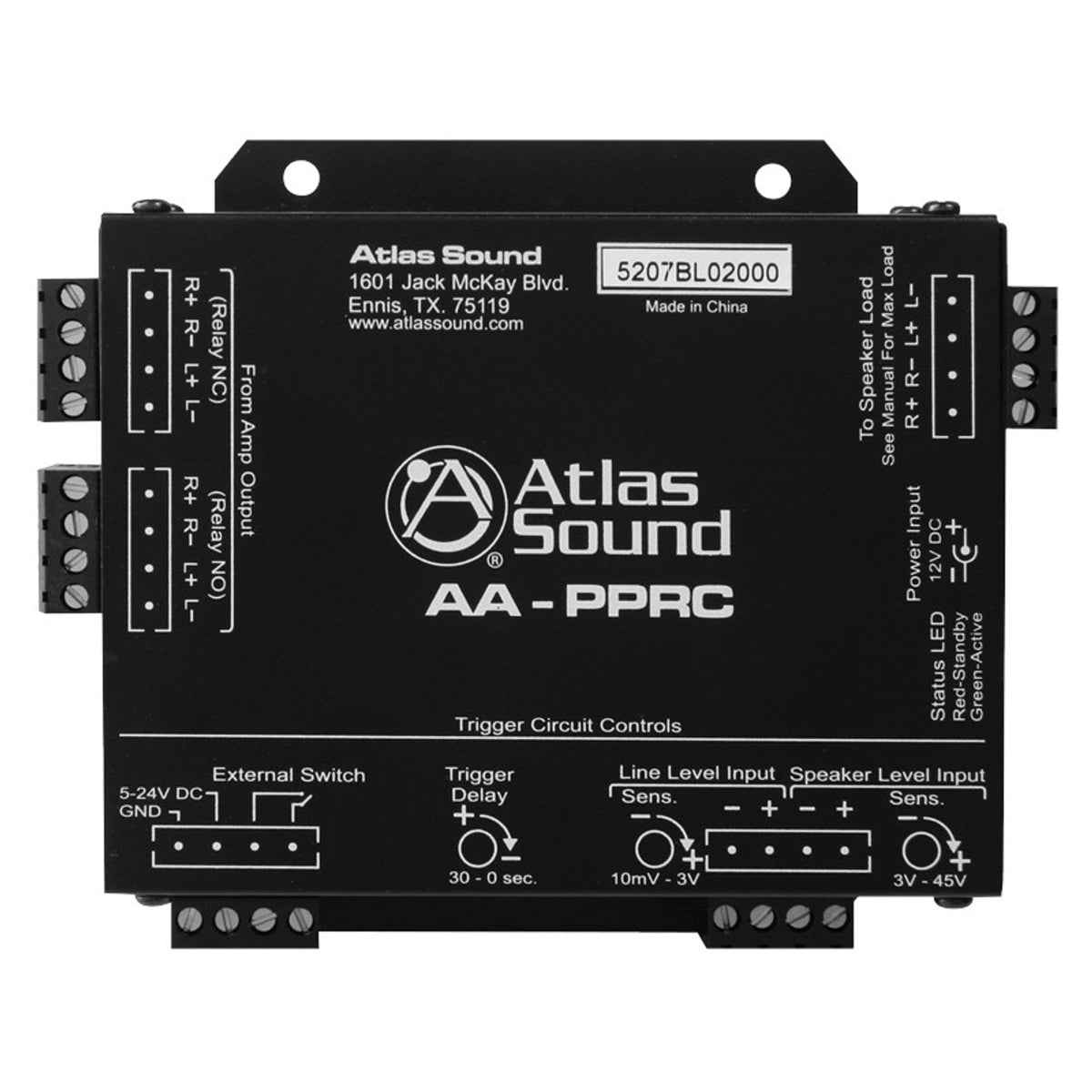

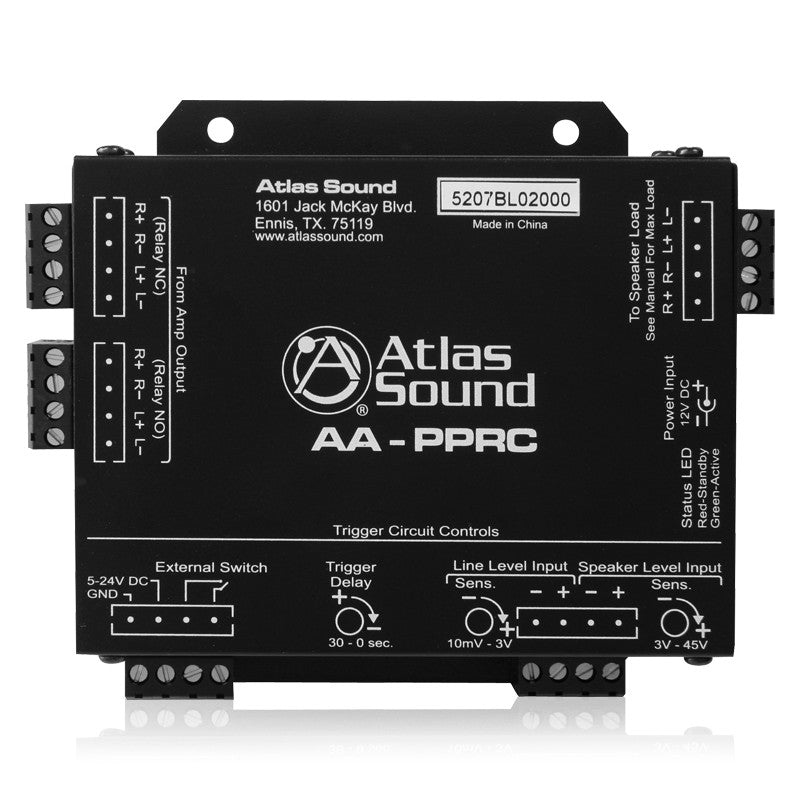

Atlas Sound AA-PPRC | Priority Paging Remote Controller
Description
Description
The AtlasIED Priority Pager Relay Controller is a two input by two output loudspeaker level relay switcher. The AA-PPRC is designed to be placed between an amplifier's output and the loudspeaker load. It can be used with 25V, 70.7V, 100V or low impedance systems.
Each channel can handle up to 350 watts. Placement of the relay controller is not critical because the systems switching can be triggered from a variety of sources. Both High Level and Line Level signals can trigger the relay control circuit as well as a wide range of DC voltages.
Contact closer terminals have also been incorporated for your convenience. Relay release can also be adjusted allowing for proper paging override tuning. The AA-PPRC can be used in variety of installs such as board room applications where an audio presentation system needs to be muted so the page can be heard. The presentation system will resume when the page has completed. It is also ideal for zone paging management for new or existing 8O, 25v, 70.7V, and 100V systems.
Atlas Sound - AA-PPRC - Features
- 12VDC UL Power Supply (Included)
- 2 Channel
- 350 W @ 70.7V Per Channel
- Audio High Level Trigger Sense with Threshold Adjust 3V - 45V
- Audio Line Level Trigger Sense with Threshold Adjust 20mV - 2V
- Compact Size H 1.5"x W 4" x L 4.5" (H 38.1 mm x W 101.6 mm x L 114.3 mm)
- Contact Closure Trigger
- DC Trigger 5V - 24V
- Finish Black with White Lettering
- Phoenix Type I/O Connectors
- Relay Recover Adjustment 1 - 30 Seconds
- Relay Trigger Threshold Adjust
- Speaker Line Remote Switcher
Specifications
Specifications
Atlas Sound - AA-PPRC - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Intercom
- Other Intercom
- Amplifiers
- Amplifier Accessories
Atlas Sound - AA-PPRC - Specifications
| Height | 1 1/2" (3.81 cm) |
|---|---|
| Width | 4" (10.16 cm) |
| Depth | 4 1/2" (11.43 cm) |
| Shipping Weight | 2.00 lbs (0.91 kgs) |
| Frequency Response | 20Hz - 20kHz Flat |
| Connector Type | Four Position Detachable Phoenix Connector |
| Finish | Black |
| Load Capacity | 5 AMPS |
| Compatible With | 8?, 25V, 70.7V, 100V Systems |
| UNSPSC Code | 46171600 |
