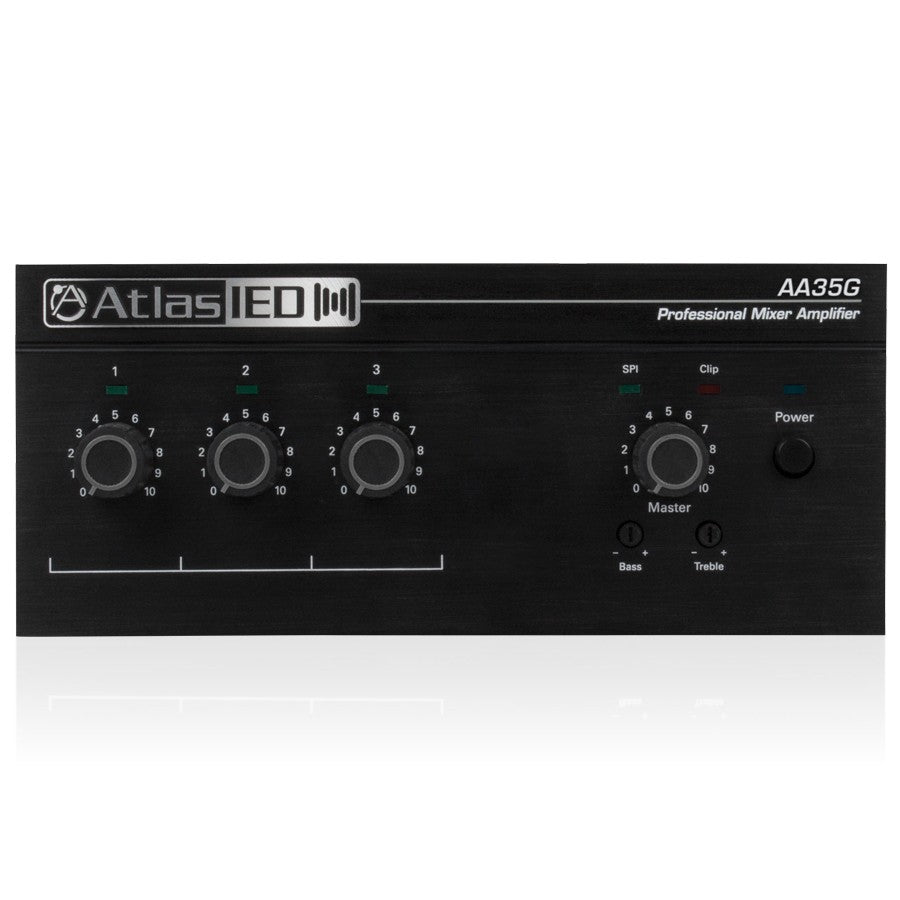

Atlas Sound AA35G | 3-Input, 35-Watt Mixer Amplifier with Global Power Supply
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound AA35G | 3-Input, 35-Watt Mixer Amplifier with Global Po...
Description
Description
The AA35G is a three input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to mediumsound masking systems, and in applications where music on hold (MOH) plus paging is required.
With one microphone input and two stereo line inputs, the AA35G will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications. 70.7V, 100V, and 8? outputs are provided.
Optional rack mount kit, model AAGRMK2 , available.
Atlas Sound - AA35G - Features
- Three inputs (each with a front panel volume control) and a single output channel
- Ideal for Paging, Background Music, and Music-On-Hold Applications
- Balanced Mic/Line Input, Telco Input, Zone 2, and Dual RCA Stereo Music Inputs
- Priority Muting by VOX or External Switch
- Bass and Treble Controls
- Secondary Zone 2 Output 1 W & 600? / MOH
- Universal AC Power Supply for Use 110V - 240V Systems
- 70V, 100V, or 8? Amplifier Output
- Signal Presence LED Indicators
Specifications
Specifications
Atlas Sound - AA35G - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Amplifiers
- Mixer Amplifiers
Atlas Sound - AA35G - Related Products
- AAGRMK2 - Rack Mount Kit for 1 or 2 AA35G or AA60G Amplifiers
- AAGRMK2 - Passive Summing Cable for AA Series Amplifiers (5.5mm Phoenix Connector)
- AA60G - 4-Input, 60-Watt Mixer Amplifier with Global Power Supply
Atlas Sound - AA35G - Specifications
| Frequency Response | 50Hz - 20kHz |
|---|---|
| Connector Type | Phoenix and RCA |
| Output Power | 35 Watts |
| Rack Units | 2 high 1/2 wide |
| Height | 3.85" (98mm) Including Feet |
| Width | 8.25" (210mm) |
| Depth | 12.25" (311mm) Front of Knobs to Back Panel |
| Shipping Weight | 8 lbs 2 oz (3.7kg) |
| Safety Listed | 60065-ROHS 2006 Compliant |
| Voltage Compatibility | Universal |
| UNSPSC Code | 52161600 |
