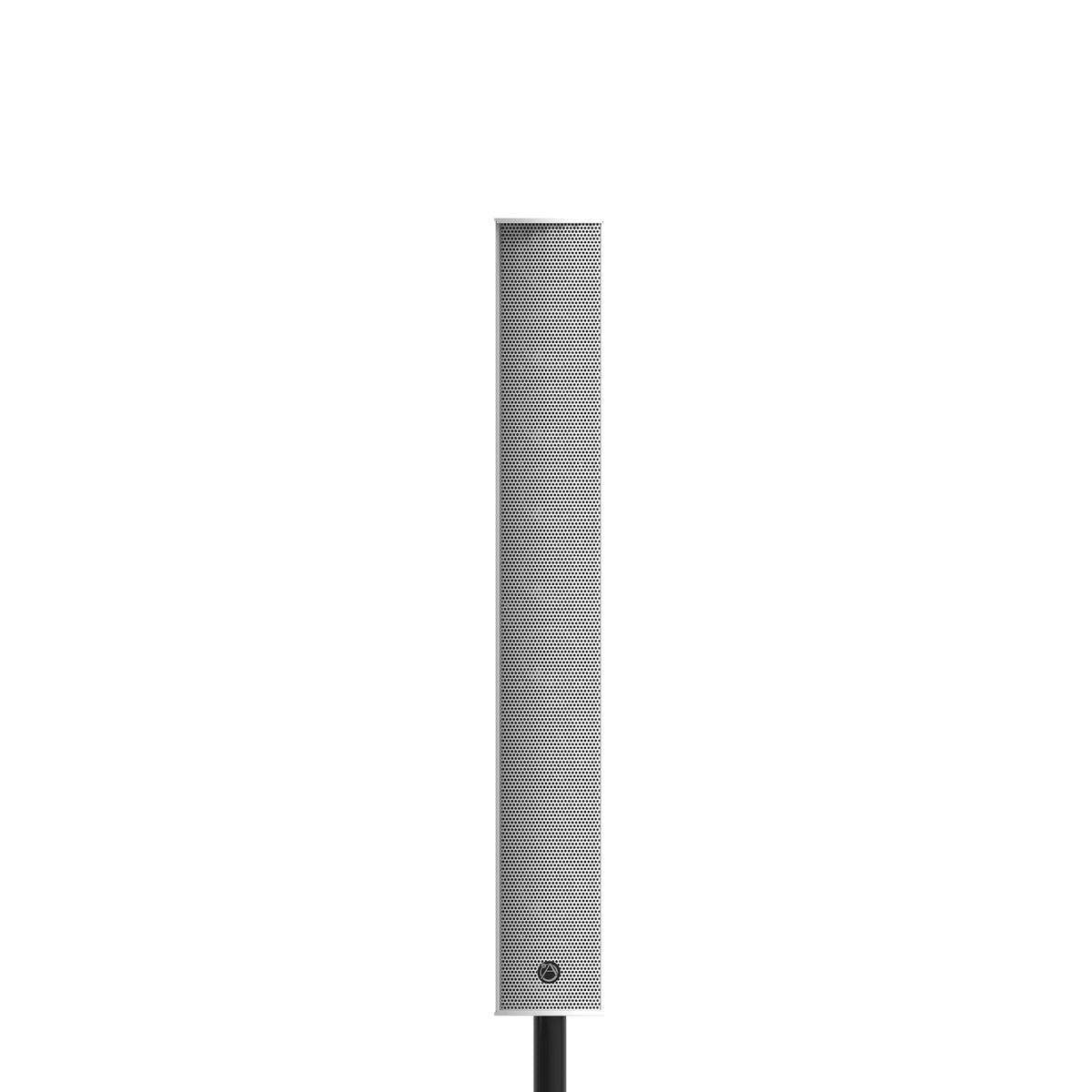

Atlas Sound ALA10T | 10 Speaker Full Range Line Array Speaker System
Description
Description
The ALA10T column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA10T’s transducer configuration combines ten tight packed 3" full range drivers and four 25mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment.The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.
Finish is silver. Note: Pole and pole mount bracket sold separately.
Atlas Sound - ALA10T - Features
- 45° Vertical Coverage
- 135° Horizontal Coverage
- Ten (10) Proprietary 3" (76mm) Full Range Drivers
- Four (4) High Frequency Tweeters
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Wall Mount Bracket Included
Specifications
Specifications
Atlas Sound - ALA10T - Product Categories
- Shop by Manufacturer/Atlas Sound
- Security
- Video Surveillance
- Video Management Software
Atlas Sound - ALA10T - Related Products
- EJW115A-B - 15" Powered Subwoofer System for Portable Installations - Black
- EJW115A-B - 15" Passive Subwoofer System for Portable Installations - Black
- ALA15T - 15 Speaker Full Range Line Array Speaker System
Atlas Sound - ALA10T - Specifications
| 70.7V Power Taps | 7.5, 15, 30 & 60 Watts |
|---|---|
| Dispersion | 135° H x 40° V |
| Sensitivity | 96dB 1W/1m |
| Frequency Response | 125Hz - 20kHz |
| Height | 32.9" (835.7mm) |
| Depth | 5.43" (137.9mm) |
| Width | 4.61" (117mm) |
| Type | Channel License |
| UNSPSC Code | 43233203 |
Atlas Sound - ALA10T - Videos
| Welcome to AtlasIED | Click to View |
|---|---|
| AtlasIED - With Over 2,000 Products... We Have All the Essentials You Need | Click to View |
| AtlasIED's Official Youtube Channel | Click to View |
