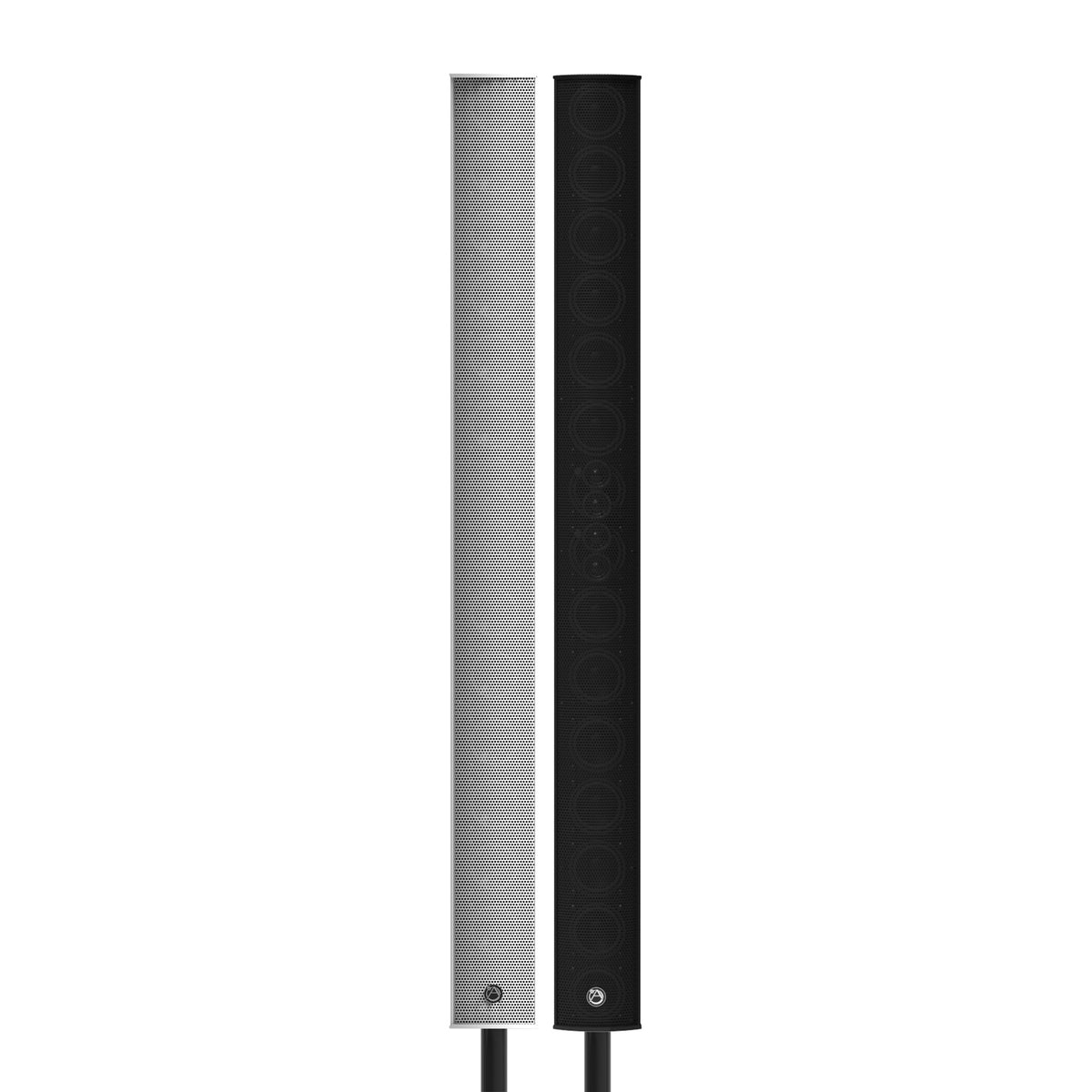

Atlas Sound ALA15TAW | EN54-24 Certified 15 Speaker Full Range Line Array Speaker System in Black or White Finish
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The EN54-24 certified ALA15TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA15TAW’s transducer configuration combines fifteen tight packed 3" (76mm)full range drivers and four 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system. Note: Pole and pole mount bracket sold separately.
Atlas Sound - ALA15TAW - Features
- 45° Vertical Coverage
- 135° Horizontal Coverage
- Fifteen (15) Proprietary 3" (76mm) Full Range Drivers
- Four (4) High Frequency Tweeters
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Wall Mount Bracket Included
Specifications
Specifications
Atlas Sound - ALA15TAW - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- Line Columns & Arrays
- ALA Series Column Arrays
Atlas Sound - ALA15TAW - Specifications
| 6? RMS Power | 600 Watts |
|---|---|
| 70.7V Power Taps | 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6?) |
| 100V Power Taps | 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6?) |
| Dispersion | 135° H x 40° V |
| Sensitivity | 96dB (1W/1m) |
| Sensitivity (EN54-24) | 81dB (1W/4m) |
| Frequency Response | 160Hz - 20kHz (+/-5dB) |
| Height | 49.37" (1254mm) |
| Depth | 5.43 (137.9mm) |
| Width | 4.61" (117mm) |
| UNSPSC Code | 52161600 |
