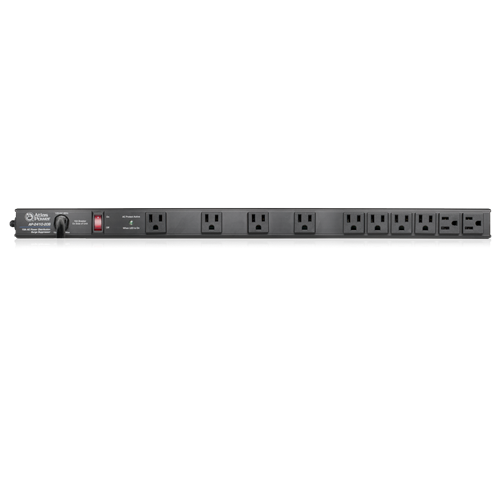

Atlas Sound AP-2410-20S | 20A - 24 inch, 10 Outlet Vertical Power Strip
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound AP-2410-20S | 20A - 24 inch, 10 Outlet Vertical Power S...
Description
Description
The Atlas Power Vertical Power Strips offer complete power management, multiple outlet spacing and outlet orientations, and RFI filtering along with spike/surge protection to make them the most compact, effective power management protection systems on the market today. The AP-2410-20S is 24" rack mountable and features 20A, 2500W power capability.
Note: If this product will be mounted in a Texas Tough cabinet, TT-CLIP mounting accessories are required.
Atlas Sound - AP-2410-20S - Features
- 10 Available 20A Outlets
- Slimline Designs, 1.62"W x 1.25"D
- Two AC Outlet Orientations: "In Line" and "90 Degree to Chassis"
- Lighted Main Power Switch
- Circuit Breaker Protection
- Three-Way Surge Suppression MOV Protection: H-N, H-G, N-G
- RFI Filtering
- AC Protect Indicator
- UL, cUL Listed
- Also Available in 72", 30 Outlet (AP-7230-20S) and 48", 20 Outlet (AP-4820-20S) Models
Specifications
Specifications
Atlas Sound - AP-2410-20S - Product Categories
- Shop by Manufacturer/Atlas Sound
- Security
- Video Surveillance
- Video Management Software
- AC Power Distribution
- Vertical Power Distribution
Atlas Sound - AP-2410-20S - Related Products
- AP-2410-15S - 15A - 24 inch, 10 Outlet Vertical Power Strip
- AP-2410-15S - 20A - 48 inch, 20 Outlet Vertical Power Strip
- AP-7230-20S - 20A - 72 inch, 30 Outlet Vertical Power Strip
Atlas Sound - AP-2410-20S - Specifications
| Outlets | NEMA 5-20R, Qty. 10 |
|---|---|
| Power Cord | 9' (2.74m), 12-gauge, AC Plug NEMA 5-20P |
| Load Rating | 2500W |
| MAX Current Protection | 20A AC Mains Breaker |
| Voltage Protection Rating | L-N: 500V, L-G: 500V, N-G: 500V / 3kA, 8/20µs |
| Energy Rating | 450 Joules, 8/20µs |
| Power Consumption | .5W |
| Height | 1.25" (31.75mm) |
| Length | 24" (609mm) |
| Width | 1.62" (41.10mm) |
| Weight | 2.6 lbs (1.2kg) |
| Type | Channel License |
| UNSPSC Code | 43233203 |
