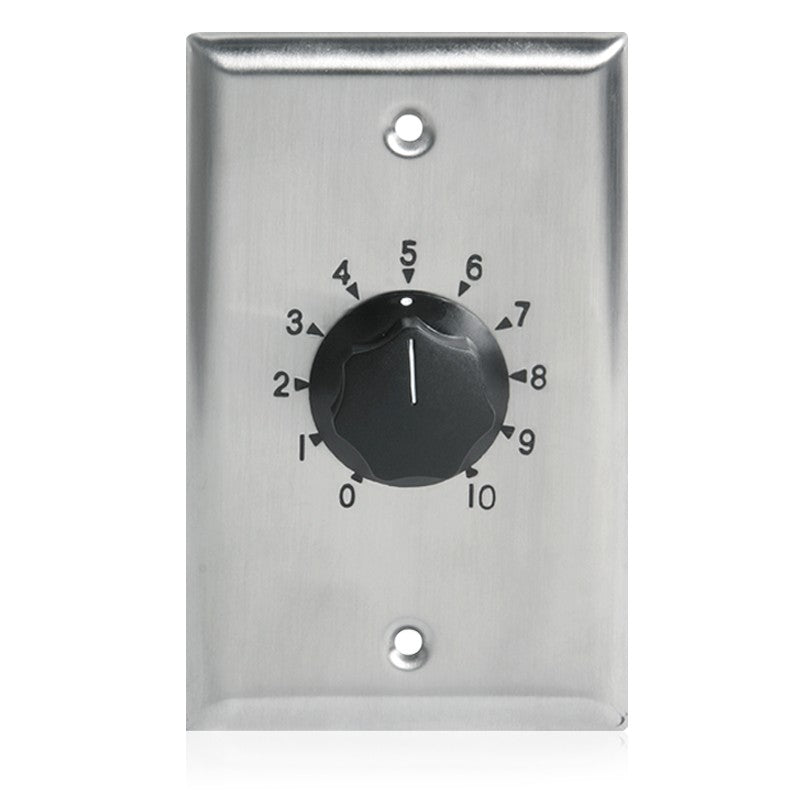

Atlas Sound AT10-PA | Deluxe Priority, Plate Mounted 10W Attenuator with Priority Relay, 3dB Steps
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound AT10-PA | Deluxe Priority, Plate Mounted 10W Attenuator...
Description
Description
Priority paging feature by-passes the attenuator dial setting to provide full program level to the speakers. Option is available on all AT attenuators. The SPDT relay is operated with 24 VDC at 10mA. Includes protective relay cover to insure lasting trouble-free performance. Terminations to the relay and attenuator are made via a removable terminal block. (All other specifications except for dimensions are the same as selected AT models.
Atlas Sound - AT10-PA - Features
- Mount into Most 1-Gang E.O. Boxes
- Priority Feature Compatible with Atlas AA120M Amplifiers
- Priority Paging Feature By-Passes the Effect of the Attenuator
- The SPDT Relay is Operated with 24 VDC at 10mA
- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
Specifications
Specifications
Atlas Sound - AT10-PA - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- Audio Accessories & Options
- Volume Controls
- Commercial
Atlas Sound - AT10-PA - Related Products
- AT10D - Deluxe Decora Plate Mounted 10W Attenuator, 3dB Steps
- AT10D - Deluxe, Rack Mounted 10W Attenuator, 3dB Steps
- AT10-PARM - Deluxe Priority, Rack Mounted 10W Attenuator W/Priority Relay, 3dB Steps
- AT10 - 10 Watt Single Gang Stainless Steel 70.7V Commercial Attenuator
Atlas Sound - AT10-PA - Specifications
| Plate Size | 1 gang |
|---|---|
| Plate Type | Stainless Steel |
| Power Rating | 10W |
| Total Attenuation | 33 dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.985 cm) |
| Depth | 2 1/8" (5.3975 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| Safety Listed | 813, 2043 |
| UNSPSC Code | 52161600 |
