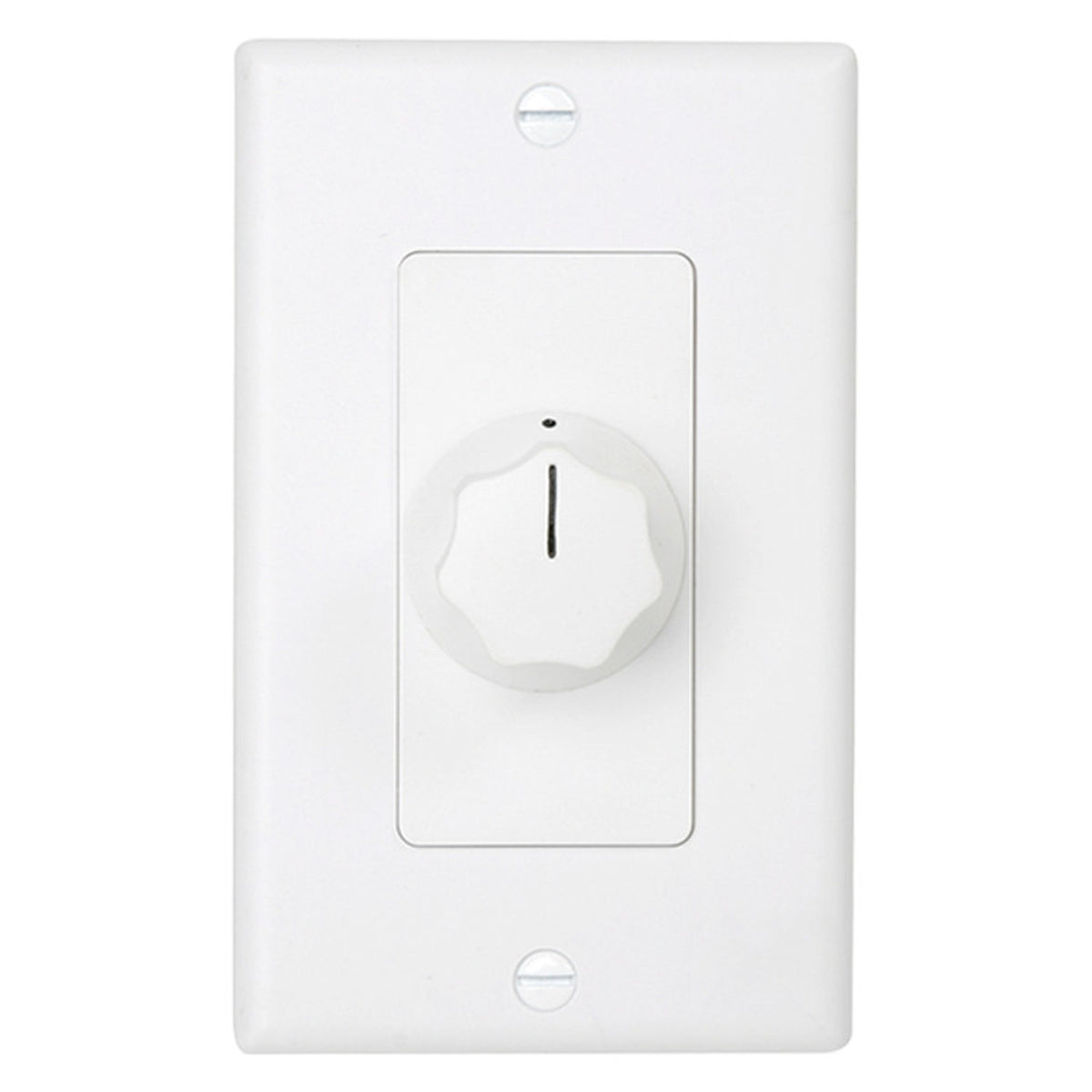

Atlas Sound AT10D | Deluxe Decora Plate Mounted 10W Attenuator, 3dB...
Description
Description
Decora style high-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems.
Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and comes complete with white and ivory plastic plates with matching skirted knobs.
Atlas Sound - AT10D - Features
- Attractive Alternative to Commercial Series Attenuators
- Mount into Most 1-Gang E.O. Boxes
- White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style
- All models mount into most 1-gang E.O. boxes
- Superior frequency response
- Easy installation via removable "Phoenix" style four-pole connector
Specifications
Specifications
Atlas Sound - AT10D - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- Audio Accessories & Options
- Volume Controls
- Commercial
Atlas Sound - AT10D - Related Products
- AT10 - 10 Watt Single Gang Stainless Steel 70.7V Commercial Attenuator
- AT10 - Deluxe, Rack Mounted 10W Attenuator, 3dB Steps
- AT10-PARM - Deluxe Priority, Rack Mounted 10W Attenuator W/Priority Relay, 3dB Steps
- AT10-PA - Deluxe Priority, Plate Mounted 10W Attenuator w/Priority Relay, 3dB Steps
Atlas Sound - AT10D - Specifications
| Plate Color | White - Ivory |
|---|---|
| Plate Size | 1 gang |
| Plate Type | Decora |
| Power Rating | 10W |
| Total Attenuation | 33 dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.985 cm) |
| Depth | 2 1/8" (5.3975 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| Safety Listed | 813, 2043 |
| UNSPSC Code | 52161600 |
