Atlas Sound AT35-PA | Deluxe Priority, Plate Mounted 35W Attenuator...
Description
Description

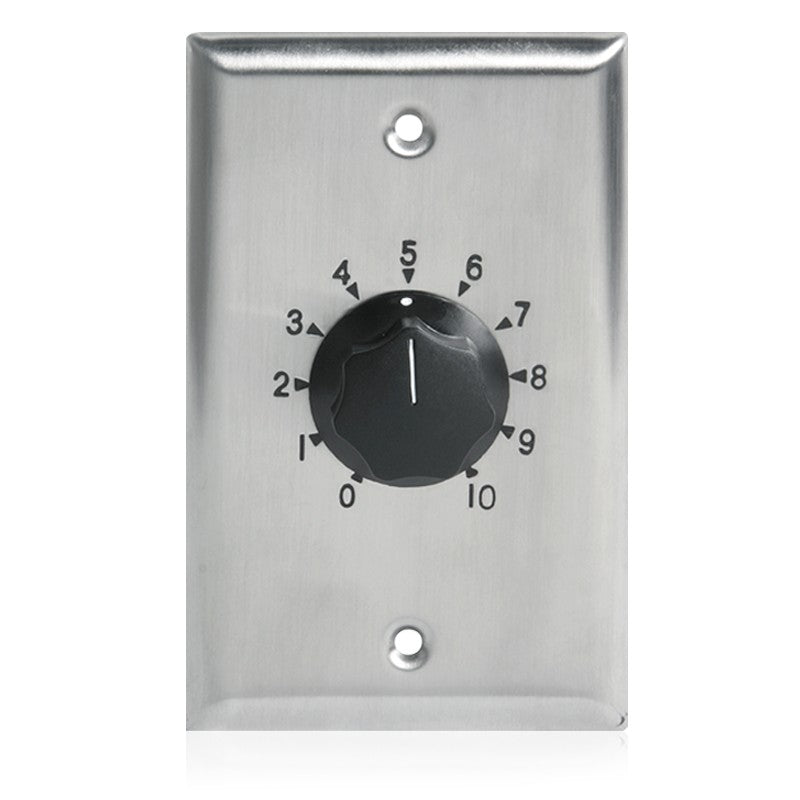

High-quality auto transformer AT35-PA provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob.
Atlas Sound - AT35-PA - Features
- Mount into Most 1-Gang E.O. Boxes
- Priority Paging Feature By-Passes the Effect of the Attenuator
- The SPDT Relay is Operated with 24 VDC at 10mA
- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
- The SPDT Relay is Operated with 24 Volt DC at 10 Miliampere
- Wallplates are Stainless Steel with Stamped and Filled Dial Scale and a Skirted Black Knob
Specifications
Specifications
Atlas Sound - AT35-PA - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- Audio Accessories & Options
- Volume Controls
- Commercial
Atlas Sound - AT35-PA - Related Products
- AT35 - 35 Watt Single Gang Stainless Steel 70.7V Commercial Attenuator
- AT35 - Deluxe Priority, Rack Mounted 35W Attenuator W/Priority Relay, 3dB Steps
- AT35-RM - Deluxe, Rack Mounted 35W Attenuator, 3dB Steps
- AT35D - Deluxe Decora Plate Mounted 35W Attenuator, 3dB Steps
Atlas Sound - AT35-PA - Specifications
| Plate Size | 1 gang |
|---|---|
| Plate Type | Stainless Steel |
| Power Rating | 35W |
| Total Attenuation | 27dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.985 cm) |
| Depth | 2 1/8" (5.3975 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| Safety Listed | 813, 2043 |
| UNSPSC Code | 52161600 |
