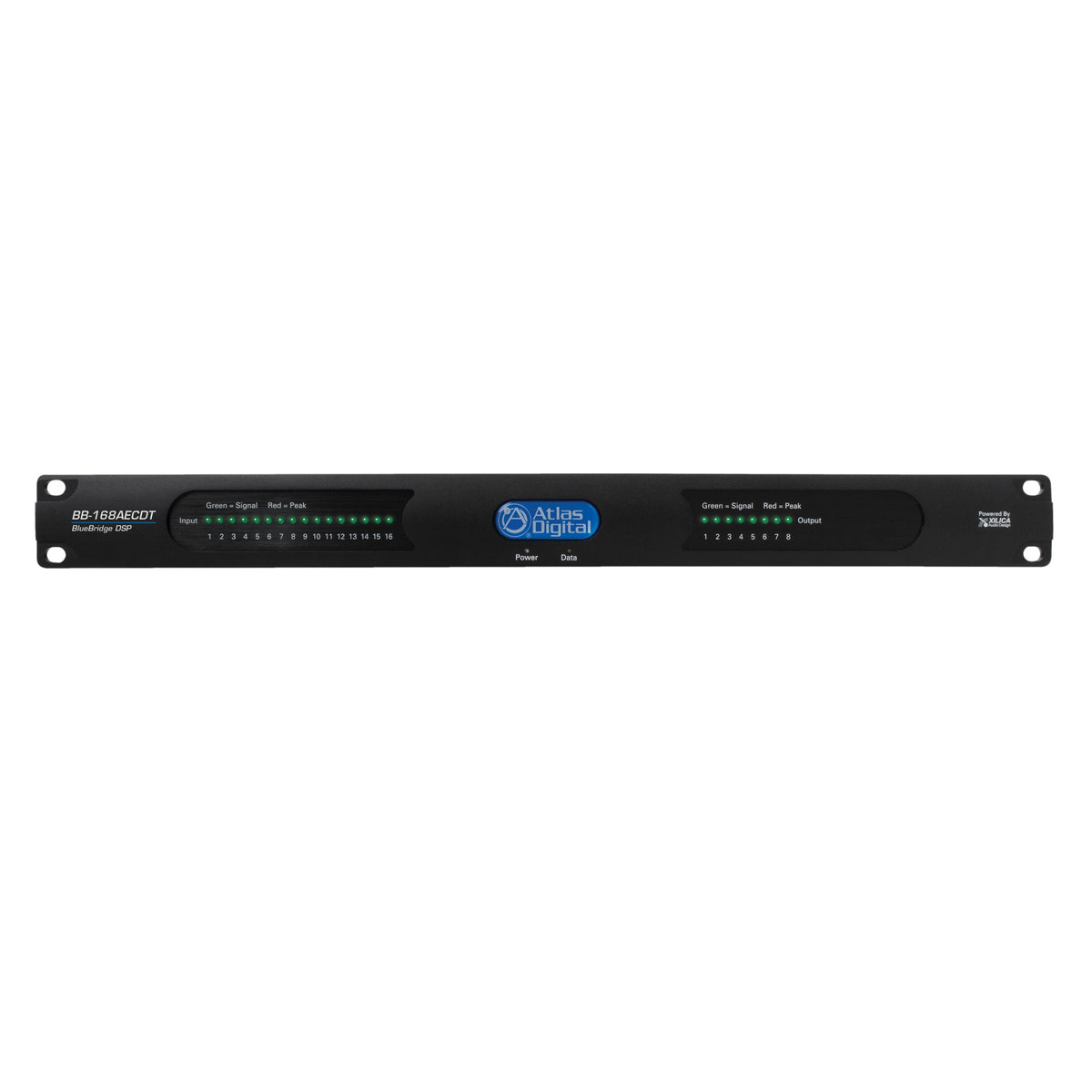

Atlas Sound BB-168AECDT | 16 Input x 8 Output - Networkable DSP Device with Acoustic Echo Cancellation
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound BB-168AECDT | 16 Input x 8 Output - Networkable DSP Dev...
Description
Description
The BlueBridge ® BB-168AECDT networkable DSP devices with Acoustic Echo Cancellation and Dante™ is a powerful and flexible tool offering mission critical solutions to successfully satisfy your customers’ teleconferencing and video conferencing needs. Engineered to strict standards with the highest quality internal components, BlueBridge ® DSP solutions provide pure clean analog and digital audio, Ethernet connectivity for cost effective TCP/IP control and open architecture with Drag and Drop programmability. AtlasIED offers the widest range of open architecture DSP platform I/O configurations of any manufacturer in the industry, all configured using the same software.
The BlueBridge ® AEC model with the Dante™ digital audio network chipset offers up to 16 channels of self-configuring, true plug-and-play digital audio over an Ethernet network providing the highest quality audio over existing network infrastructure.
Atlas Sound - BB-168AECDT - Features
- Wide-Band Acoustic Echo Cancellation
- Dante™ Ethernet Based Digital Audio
- True Plug-and-Play Digital Audio Networking
- 16x8 I/O Configuration
- Open Architecture Programmability
- High Quality THAT® Corporation Mic Preamps
- TCP/IP Third Party Control Capability
- Four Logic Inputs & Outputs
- 48kHz, 40 Bit Floating DSP Engine
- Remote Control Using Optional Wall Plates
- Output Peak & Signal Indicator LEDs
- Safety Listed to UL60065
Specifications
Specifications
Atlas Sound - BB-168AECDT - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Video Signal Distribution
- Other Video Signal Distribution
- DSP / Signal Processors
- BlueBridge® DSP Platform
- BlueBridge® DSP Rack Mount Devices
Atlas Sound - BB-168AECDT - Related Products
- BBWP-TOUCH7B - BlueBridge® 7" Touch Panel Wall Controller
- BBWP-TOUCH7B - 16 Input x 16 Output - Networkable DSP Device with Dante™
- BB-168 - 16 Input x 8 Output - Networkable DSP Device
- BB-816 - 8 Input x 16 Output - Networkable DSP Device
Atlas Sound - BB-168AECDT - Specifications
| Input Type | Mic or Line, GUI Selectable |
|---|---|
| Power Requirement | 90-240VAC (50-60Hz) |
| Input Gain | -40 to +15dB in 0.25 dB steps |
| Phantom Power | 48V, GUI Enabled |
| Output Type | Line |
| Output impedance | 50? |
| RAID | 40-Bit Floating Point |
| Sample Rate | 48kHz |
| Analog Converters | High Performance 24-Bit |
| Width | 19" (483mm) |
| Height | 1.75" (44mm) |
| Depth | 9" (229mm) |
| UNSPSC Code | 39121020 |
