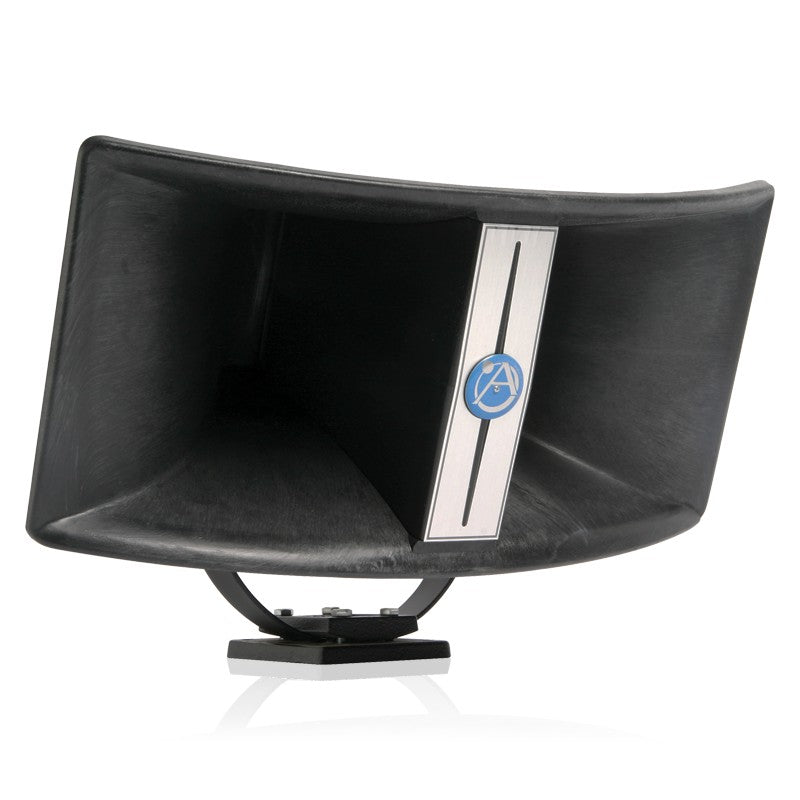

Atlas Sound BIA-100 | Bi-Axial Horn Speaker with Twin Reflex Air Column
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound BIA-100 | Bi-Axial Horn Speaker with Twin Reflex Air Co...
Description
Description
Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. BIA-100 is designed for use with AtlasIED PD Series compression drivers and models having 13/8" -18 male threads and 0.707" dia. throat openings.
The easily-mounted horn features the labor-saving patented gimbal-mount bracket assembly (U.S. Patent # 4,325,529) which allows for directional positioning up to 180° vertically and horizontally. It includes a steel bracket, cast-mounting base and provisions for flange installation. The weather-resistant, non-glare matte black foam horn is resistant to resonance. Bracket assembly is finished in durable epoxy.
Atlas Sound - BIA-100 - Features
- Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.
- High-Efficiency Bi-Axial Horn Provides 130° x 60° Wide-Angle Sound Coverage
- Nominal Frequency Response of 350-8,000 Hz for High-Intelligibility Voice, Signaling and Full-Range Music in Indoor/Outdoor Applications
- Patented 180° Gimbal-Mount for Installation Flexibility
- Multi-purpose horns for high intelligibility sound distribution in voice and signal applications
- Accepts all standard high-efficiency compression drivers with 1 3/8 in. - 18 male threads
- Weatherproof construction for year round use
Specifications
Specifications
Atlas Sound - BIA-100 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Horns
- Paging Horns
- Reflex Horns/Compression Drivers
Atlas Sound - BIA-100 - Related Products
- PD-30 - 30-Watt 8? Compression Driver for Large Format Horn Speakers
- PD-30 - 40-Watt 16? Compression Driver for Large Format Horn Speakers
- PD60A - 60-Watt 16? Compression Driver for Large Format Horn Speakers
- PD-30T - Compression Driver for Large Format Horn Speakers with 30-Watt 70V Transformer
Atlas Sound - BIA-100 - Specifications
| Dispersion | 130° x 60° |
|---|---|
| Height | 10 1/4" (26.035 cm) |
| Width | 21" (53.34 cm) |
| Depth | 19 1/4" (48.895 cm) |
| Shipping Weight | 16.00 lbs (7.26 kgs) |
| UNSPSC Code | 52161600 |
