Atlas Sound BMT95-4 | Blind Mount 4 inch Enclosure 5 inch Deep
Description
Description

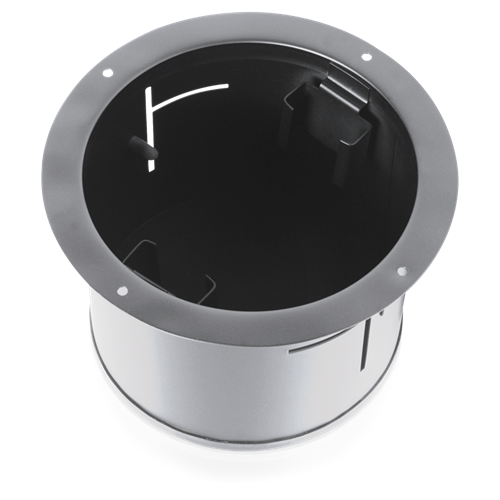

AtlasIED 4" Blind-Mount enclosure system ( U.S. Patent # 4,673,149 ) provides an easy and cost-effective alternative for secure speaker installation in retrofit ceiling applications. All necessary hardware is provided including a unique support system with mounting ears that telescope out from inside the enclosure and adjust vertically to accommodate ceilings with a thickness of 1/2" (13mm) to 1 3/8" (35mm).
Units feature CRS construction and include torsion-spring receptacles for quick mounting of torsion-spring grilles. (J-Nuts are also included on the return of the enclosure to accommodate surface-mounting grilles.)
To allow cable access, enclosure backplates are manufactured with three 1/2" (13mm) conduit knockouts. Enclosure is also equipped with sound damping material to minimize metallic resonance. Models are supported by two mounting ears and will accommodate AtlasIED torsion-spring grille Models T51-84 and T720-4BT which mount 4" (102mm) speakers.
Finished in a textured black epoxy.
Atlas Sound - BMT95-4 - Features
- Mounting Ears Adjust Vertically to Accommodate Varying Ceiling Thicknesses
- Quick Mounting of Torsion-Spring and Surface-Mounting Loudspeaker Grilles
- Support System Enables Enclosure Installation in Retrofit Ceiling Applications
Specifications
Specifications
Atlas Sound - BMT95-4 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Audio Equipment Accessories
- Speakers
- Speaker Components
- Baffles & Back Boxes
Atlas Sound - BMT95-4 - Specifications
| Depth | 5" (12.7 cm) |
|---|---|
| Diameter | 6 1/2" (16.51 cm) |
| Shipping Weight | 2.33 lbs (1.06 kgs) |
| Mounts Baffle | T51-84, T720-4BT |
| UNSPSC Code | 52161600 |
