Atlas Sound BMT95-8 | Blind Mount 8 inch Enclosure 5 inch Deep
Description
Description

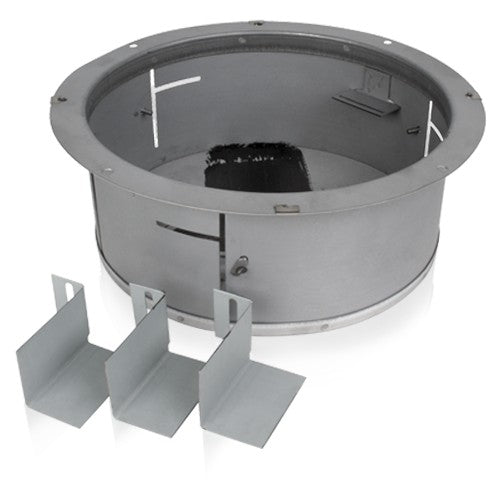

AtlasIED 8" Blind-Mount enclosure systems ( U.S. Patent # 4,673,149 ) provide an easy and cost-effective alternative for secure speaker installation in retrofit ceiling applications. All necessary hardware is provided including a unique support system with mounting ears that telescope out from inside the enclosure and adjust vertically to accommodate ceilings with a thickness of 1/2" (13mm) to 1 3/8" (35mm).
Units feature CRS construction and include torsion-spring receptacles for quick mounting of torsion-spring grilles. (J-Nuts are included on the return of the enclosure to accommodate surface-mounting grilles.)
To allow cable access, enclosure backplates are manufactured with three 1/2" (13mm) conduit knockouts. Enclosures are also equipped with sound damping material to minimize metallic resonance.
Atlas Sound - BMT95-8 - Features
- Mounting Ears Adjust Vertically to Accommodate Varying Ceiling Thicknesses
- Quick Mounting of Torsion-Spring and Surface-Mounting Loudspeaker Grilles
- Support System Enables Enclosure Installation in Retrofit Ceiling Applications
Specifications
Specifications
Atlas Sound - BMT95-8 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Audio Equipment Accessories
- Speakers
- Speaker Components
- Baffles & Back Boxes
Atlas Sound - BMT95-8 - Specifications
| Depth | 4 1/2" (11.43 cm) |
|---|---|
| Diameter | 10 1/8" (25.72 cm) |
| Shipping Weight | 3.33 lbs (1.51 kgs) |
| Mounts Baffle | (T)51-8, (T)60-8(W), (T)61-8W, (T)62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, T610-8W, T710-8, T720-8A, M222(W),TM222W, P900, 60-R |
| UNSPSC Code | 52161600 |
