Atlas Sound C803AT47 | 8 Inch In-Ceiling Coaxial Speaker with 4-Wat...
Description
Description

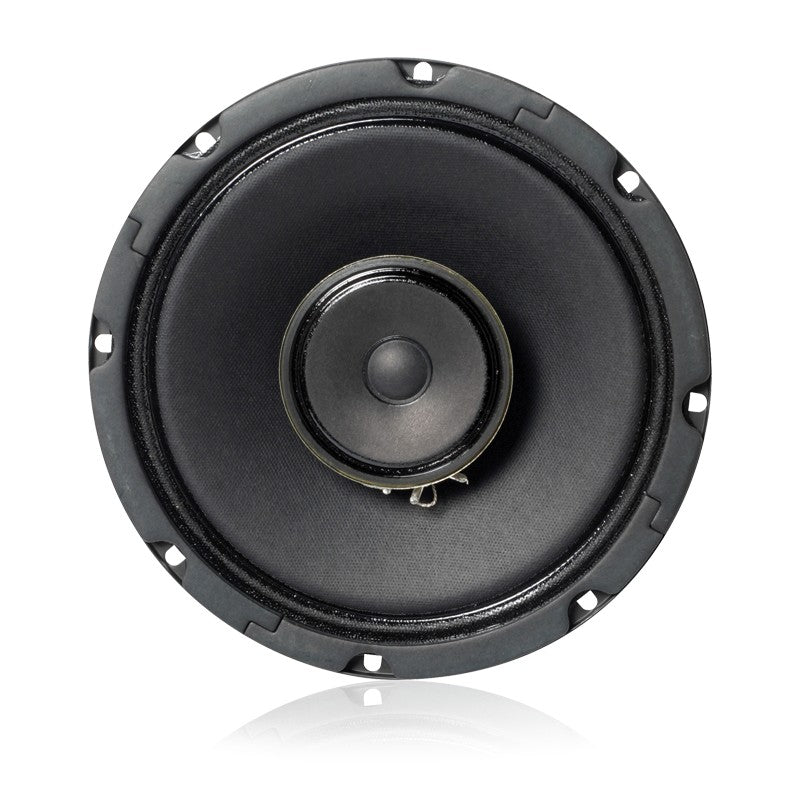

Model C803AT47, A high-quality 16-watt loud speaker with a factory-installed 70.7V 4W linematching transformer Model C803AT47 utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance.
This coaxial speaker features a 70Hz - 15.5kHz, ±5dB frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.
The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).
Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.
Atlas Sound - C803AT47 - Features
- Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
- Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
- Offers Proven Performance with Wide Frequency Response
- Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
- UL Certified, Safety Listed to UL1480A and UL2043
Specifications
Specifications
Atlas Sound - C803AT47 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- Speaker Components
- Speaker Drivers
Atlas Sound - C803AT47 - Specifications
| Speaker Type | Treated Paper |
|---|---|
| Sensitivity | 98dB (peak), 95dB (avg) |
| Frequency Response | 60Hz - 12kHz |
| Power Taps | .5, 1, 2 & 4 Watts |
| Dispersion | 120° |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 3.67 lbs (1.66 kgs) |
| Safety Listed | 1480, 2043 |
| UNSPSC Code | 52161600 |
