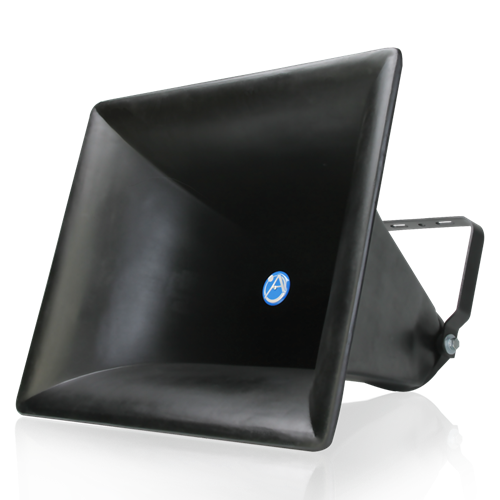

Atlas Sound CD42 | 40° X 20° Constant Directivity Re-Entrant Paging Horn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound CD42 | 40° X 20° Constant Directivity Re-Entrant Paging...
Description
Description
The Industry's Only Constant Directivity Re-Entrant Horn, CD Series horns from AtlasIED provide greatly improved uniform sound coverage compared to conical designs.
With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters. Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.
Recommended AtlasIED Drivers: PD30 Series, PD-5 Series, PD60 Series.
Atlas Sound - CD42 - Features
- Coverage of 40° x 20° Across a Wide Frequency Range for Predictable Beamwidth Control
- Nominal Frequency Response of 800Hz - 10kHz for High-Intelligibility Voice, Signaling
- Environment-Resistant Construction for Outdoor/ Indoor Applications
- Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.
- Patented 180° Gimbal-Mount for Installation Flexibility
Specifications
Specifications
Atlas Sound - CD42 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Security
- Video Surveillance
- Video Management Software
- Horns
- Paging Horns
- Constant Directivity
Atlas Sound - CD42 - Related Products
- PD-5VH - 40-Watt 16? Compression Driver for Large Format Horn Speakers
- PD-5VH - Compression Driver for Large Format Horn Speakers with 40-Watt 70V Transformer
- PD-30 - 30-Watt 8? Compression Driver for Large Format Horn Speakers
- PD-30T - Compression Driver for Large Format Horn Speakers with 30-Watt 70V Transformer
Atlas Sound - CD42 - Specifications
| SPL (1W/1M) w/ PD60 Driver | 113dB |
|---|---|
| Dispersion | H, 40°, ±10°, 800Hz-10kHz, V, 20°, ±10°, 2kHz-10kHz |
| Low Frequency Cut Off | 300Hz |
| Air Column Length | 5' |
| Height | 21 1/4" |
| Width | 25 1/2" |
| Depth | 22" |
| Type | Channel License |
| UNSPSC Code | 43233203 |
