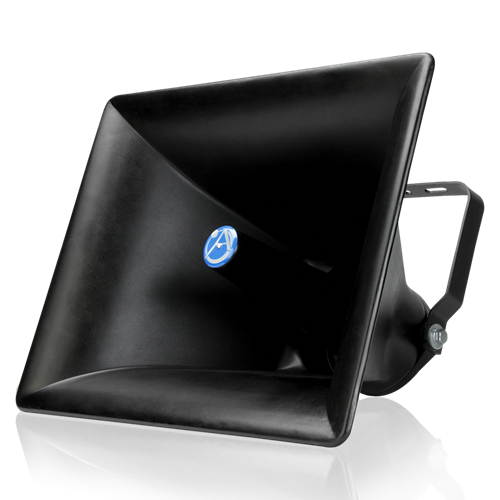

Atlas Sound CD64 | 60° X 40° Constant Directivity Re-Entrant Paging...
Description
Description
The Industry's Only Constant Directivity Re-Entrant Horn New CD Series horns from AtlasIED provide greatly improved uniform sound coverage compared to conical designs.
With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters.
Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.
Recommended AtlasIED Drivers: PD30 Series, PD-5 Series, PD60 Series.
Atlas Sound - CD64 - Features
- High Efficiency Constant Directivity, Re-Entrant Horn Design
- Popular Coverage Patterns to Accommodate Most Applications
- Vertical Beamwidth Control Down to 1000Hz
- Heavy-Duty Positive Locking Steel Mounting Bracket for Secure Positioning
- Environment - Resistant Construction for Indoor / Outdoor Applications
- Equipped With Standard 1 3/8" - 18 Female Threads for Use with All PD Series Drivers
Specifications
Specifications
Atlas Sound - CD64 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Horns
- Paging Horns
- Constant Directivity
Atlas Sound - CD64 - Related Products
- PD-30 - 30-Watt 8? Compression Driver for Large Format Horn Speakers
- PD-30 - 40-Watt 16? Compression Driver for Large Format Horn Speakers
- PD60A - 60-Watt 16? Compression Driver for Large Format Horn Speakers
- PD-30T - Compression Driver for Large Format Horn Speakers with 30-Watt 70V Transformer
Atlas Sound - CD64 - Specifications
| SPL (1W/1M) w/ PD60 Driver | 112dB |
|---|---|
| Low Frequency Cut Off | 300Hz |
| Air Column Length | 4.5' |
| Dispersion | H, 60°, ±10°, 600Hz - 6kHz V, 40°, ±10°, 1000Hz - 7kHz |
| Height | 18 1/4" (463mm) |
| Length | 15" (380mm) |
| Width | 22 3/4" (578mm) |
| UNSPSC Code | 52161600 |
