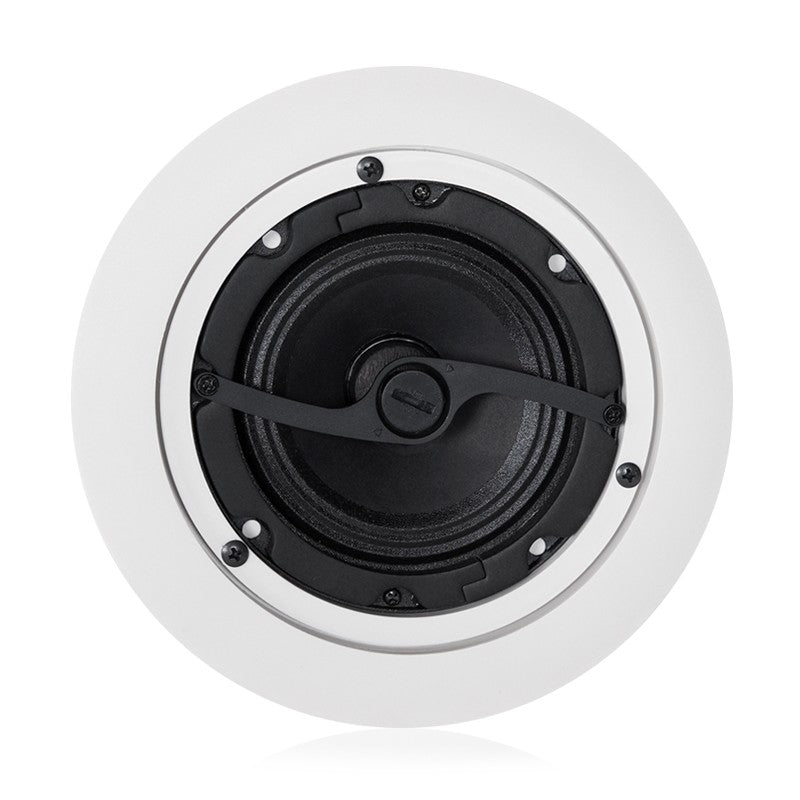

Atlas Sound DLS4 | 4 Inch In-Ceiling Full Range Speaker with 8-Watt 70V/100V Transformer and Press Fit Grille
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound DLS4 | 4 Inch In-Ceiling Full Range Speaker with 8-Watt...
Description
Description
The DLS4 was specially designed for use in low ceiling paging and background music applications such as airports where wide dispersion, high efficiency and ease of installation are required.
The DLS4 is also well suited for use in rail stations, retail stores and hospitality applications.
The system consists of 4" high efficiency driver with a unique (patent pending) tap selector switch design to allow for easy system tuning. A full selection of taps up to 8 watts as well as an 8 ohm bypass setting is included for maximum system versatility. This switch "knob" also functions as a diffuser cone, providing smooth, even dispersion of the high frequency content from the center of the 4" driver.
Atlas Sound - DLS4 - Features
- Selector Knob Doubles as a Dispersion Cone and Allows Tap Selection to be Done After the Speaker is Installed into Ceiling
- Small Footprint and Press-Fit Grilles Give Discrete Installed Appearance
- Works in Most New or Retro-Fit Ceiling Applications with Atlas Sound Hardware
- UL Certified, Safety Listed to UL1480A and UL2043
- UL Listing pending
- Variety of mounting hardware options
Specifications
Specifications
Atlas Sound - DLS4 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- In-Ceiling
- In-Ceiling Speaker Packages
Atlas Sound - DLS4 - Specifications
| Speaker Type | Paper |
|---|---|
| Sensitivity | 92dB (at 1W/1m) |
| Frequency Response | 150Hz - 17kHz |
| 70.7V Power Taps | 0.5, 1, 2, 4 & 8 Watts |
| Dispersion | 105° |
| Depth | 4 1/4" (10.795 cm) |
| Diameter | 4" (10.16 cm) |
| Shipping Weight | 4.40 lbs (2.00 kgs) |
| Safety Listed | UL1480 and UL2043 |
| UNSPSC Code | 52161600 |
Atlas Sound - DLS4 - Videos
| Welcome to AtlasIED | Click to View |
|---|---|
| AtlasIED - With Over 2,000 Products... We Have All the Essentials You Need | Click to View |
| AtlasIED's Official Youtube Channel | Click to View |
