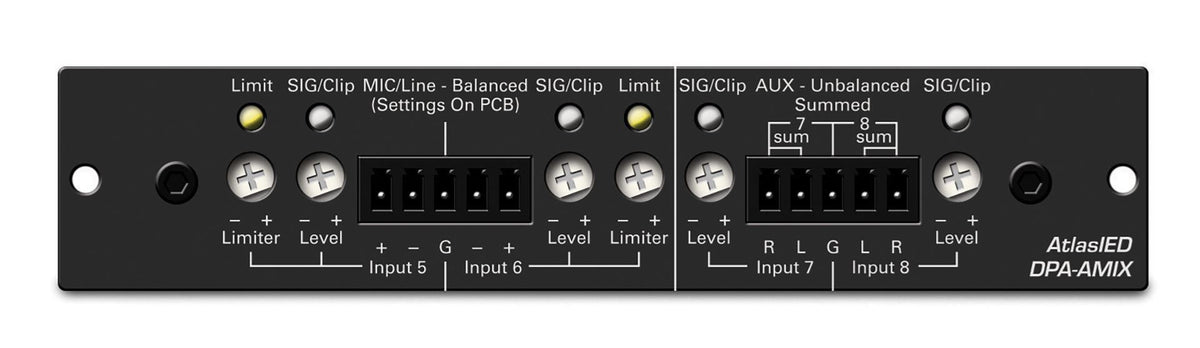

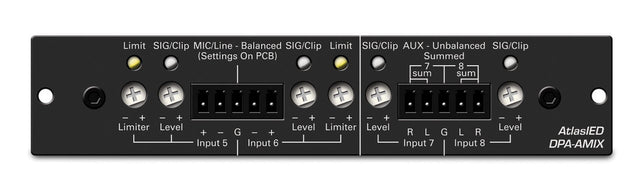

Atlas Sound DPA-AMIX | Analog Mixer Accessory Card for DPA Amplifiers
Description
Description
The DPA-AMIX accessory card is designed to work in conjunction with DPA Series amplifiers that include a rear panel accessor card slot. The unit features 4 inputs, two mic/line inputs and two auxiliary line inputs. The mic/line inputs are user selectable and include Phantom power, 120Hz Hi Pass filter and a variable limiter on both inputs. The two auxiliary inputs feature a mono active summing circuit that gives the ability to connect two stereo sources to the amplifier simultaneosly. All inputs have separate level controls and signal and clip LEDs.
Atlas Sound - DPA-AMIX - Features
- 2 Balanced Mic / Line Input
- 2 Summed Mono or 1 Stereo or AUX Line Inputs
- Switchable 24V Phantom Power
- 2 Variable Input Limiter on Mic Inputs
- Assignable 120Hz / 12dB Hi-Pass Filter for Mic / Line Inputs
- Recessed Level Controls
- Input Signal & Clip Indicator LEDs
Specifications
Specifications
Atlas Sound - DPA-AMIX - Product Categories
- Shop by Manufacturer/Atlas Sound
- Security
- Video Surveillance
- Video Management Software
- Amplifiers
- Onboard DSP Power Amplifiers
- DPA-Series Amplifiers
Atlas Sound - DPA-AMIX - Related Products
- DPA1202 - 1200-Watt Networkable Multi-Channel Power Amplifier with Optional Dante™ Network Audio
- DPA1202 - 2400-Watt Networkable Multi-Channel Power Amplifier with Optional Dante™ Network Audio
- DPA602 - 600-Watt Networkable Multi-Channel Power Amplifier with Optional Dante™ Network Audio
Atlas Sound - DPA-AMIX - Specifications
| Connector Type | Removable |
|---|---|
| Frequency Response | 20Hz - 20KHz +/- 1dB |
| THD | .06% @ 1KHz |
| Height | 0.97" (2.46cm) |
| Width | 4.70" (11.94cm) |
| Depth | 2.5" (6.3cm) |
| Weight | 2.6oz (0.07kg) |
| Type | Channel License |
| UNSPSC Code | 43233203 |
