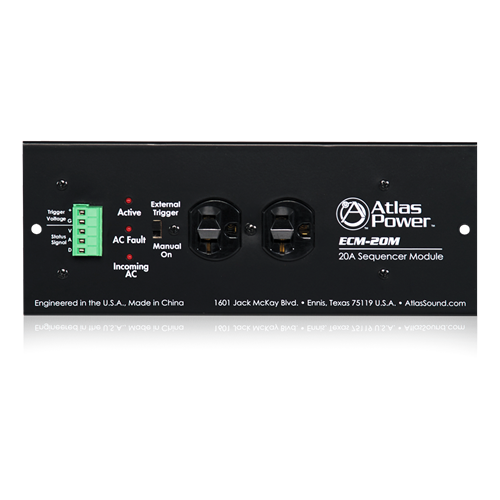

Atlas Sound ECM-20M | 20A AC Power Conditioner and Spike Suppressor
Description
Description
The Atlas Power ECM-20M is a 20A Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an ECS unit up to 1000ft away. The ECM-20M features AC Spike and Surge Suppression, AC Mains Voltage monitoring, EVS circuitry, and Remote Activation. In addition, the ECM-20M features noise filtering for removing unwanted Radio Frequency Interference (RFI) and EMI filters to reduce noise from Electromagnetic Interference (EMI) caused by items such as electric motors or switching power supplies.
The ECM-20M is designed to be conveniently housed in the ECM-RACEWY6 for the addition of multiple outlets directly connected to the AC mains from the electrical panel.
Atlas Sound - ECM-20M - Features
- 2 Outlets, 20A
- Manual/Auto On/Off Switch
- Incoming AC Present LED
- Active LED
- Clamping Spike & Surge Suppression
- AC Mains Voltage & Current Monitoring
- Radio Frequency and Electromagnetic Interference Filtering
Specifications
Specifications
Atlas Sound - ECM-20M - Product Categories
- Shop by Manufacturer/Atlas Sound
- Security
- Video Surveillance
- Video Management Software
- AC Power Distribution
- Vertical Power Distribution
Atlas Sound - ECM-20M - Related Products
- ECM-20 - 20A AC Power Conditioner and Spike Suppressor
- ECM-20 - AC Sequence Controller and Monitor
- ECM-20SH - 20A AC Power Conditioner and Spike Suppressor (Single Housing)
Atlas Sound - ECM-20M - Specifications
| Current Rating | 20 Amps |
|---|---|
| Power Requirement | 120V 60Hz |
| Certified to Safety Listing | ETL (UL 1449) |
| Operating Voltage | 102-132VAC |
| Minimum Spike Clamping Voltage | 460 VRMS @ 3000A |
| Maximum Spike Clamping Voltage | 6,000V |
| Power Consumption | .5 Watts |
| Height | 3.0" (76.2mm) |
| Width | 8.5" (215.9mm) |
| Depth | 3.5" (88.9mm) |
| Weight | 1.75 lbs. (.80 kg) |
| Type | Channel License |
| UNSPSC Code | 43233203 |
Atlas Sound - ECM-20M - Videos
| Welcome to AtlasIED | Click to View |
|---|---|
| AtlasIED - With Over 2,000 Products... We Have All the Essentials You Need | Click to View |
| AtlasIED's Official Youtube Channel | Click to View |
